Models And Options

Models

Only one model available

Dimensions

Additional Dimensions

Height....................850mm
Turning radius....................1130mm

Additional Info

More Details

FRAME

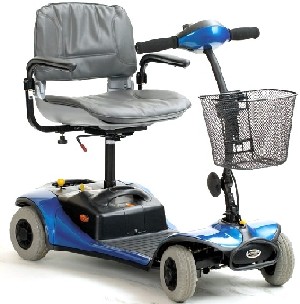

This scooter has an epoxy coated steel frame, moulded plastic cowling and a slip resistant matting on the foot platform. Three sets of interchangeable colour panels are provided as standard with the scooter, and enable the user to select silver, red or blue cowling.

SEAT has a release lever located on the right side of the scooter underneath the seat which allows the seat to swivel. The seat and backrest are padded, with no padding on the arm rests. The arm rests are lift up and width adjustable.

STEERING COLUMN can be folded down for transportation and is controlled via foam covered handles.

FRONT & REAR WHEELS are 200mm (8") diameter, solid tyres.

BATTERY CHARGING is achieved by connecting the scooter to an off board battery charger, from a charger inlet located under a cover under the seat to a mains power point.

BATTERIES are two 12 volt, 12 Amp batteries. They are stored in a compartment under the seat.

FOOTREST is a flat platform between the steering column and battery compartment. Features a slip resistant covering.

CONTROLS feature a key for turning the scooter on and off, a speed lever that allows speed control, and a horn. A battery charge indicator is lit by an LED light and indicates the amount of proportional charge remaining in the batteries.

BRAKES are electromagnetic

FREEWHEELING
The scooter can be free wheeled by operating a lever located at the rear right hand corner of the base.

SAFETY FEATURES include a reversing beeper which sounds when the scooter is being reversed.

TRANSPORTING
The scooter dismantles into 5 parts for transport - seat, battery compartment, rear wheel base, chassis unit, and front basket.

Dismantling Instructions:
- Remove the basket by pulling up gently.
- Fold the seat backrest down and pull up on the seat lever. When the seat leer is up, pull straight up and the seat will lift off.
- Remove the battery compartment by pulling up and forward on the battery compartment handle to release the hook & loop tabs holding the battery compartment in place.
- To split the scooter base, use the red release lever to release the motor section and lift up to separate.
- Fold the front tiller down onto the scooter after turning the tiller knob anti-clockwise until the small teeth disengage. Lay the tiller down and engage the tiller lock at the front of the scooter to stop the tiller moving in transit. It features an inbuilt carry handle for use when dismantled.

Factors To Consider

This item should be trialled in the users home environment to ensure maximum safety / independence. Environmental considerations include kerbs, footpaths, road / railway crossings, etc

Overall length..........1120mm
Overall width...........560mm
The space allowed on public transport for carrying mobility equipment is an area of 1300mm by 800mm.

State transit will only carry scooters with an unladen weight of less than 200 kg and which can be driven onto the bus, and manoeuvred to fit wholly within the designated wheelchair space under their own power. Any such scooters carried must also comply where relevant with the rules applying to wheelchairs.

Three wheeled mobility aids of any kind are unstable in normal bus operations and will not be carried because of the safety risk.

Requirements

Licence & Insurance Requirements

In NSW, motorised wheelchairs that weigh less than 110 kg and cannot travel at more than 10 km/h do not have to be registered, provided they are being used by a person with mobility problems. A person driving a motorised wheelchair under these circumstances is defined as a pedestrian under the Australian Road Rules and is permitted to travel on a footpath or nature strip adjacent to the road.

Vehicles exempt from registration are covered by the nominal defendant scheme (administered by the Motor Accidents Authority) if they are at fault in an accident in NSW on a road or road related area and cause injury to another person. However, this cover is only valid in NSW.

Standards

Specific Australian Standards or other Standard(s) may be applicable for materials, manufacturing processes, or installation of some types of equipment. Compliance with relevant Standards is indicated by written certification that a product has been tested and assessed as compliant with specific Standards. Purchasers are advised to check with the supplier or manufacturer of this item as to its compliance with relevant Standard(s).

Place Of Manufacture

Taiwan
