More Details

Frame
* Rigid steel chassis
* Adjustable drive wheel suspension system
* Anti-tip wheels

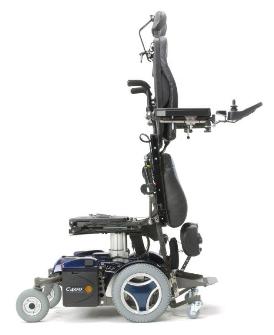

Stand Up Mechanism
* Power stand up function
Three programmable stand sequences available including:
1.Tilt table stand (seat lies supine)
2.Open sit-to-stand (back angle opens to 45 degrees)
3.Tight sit-to-stand (back angle remains at 90 degrees)

Controls
* R-Net electronics coupled with Intelligent Control System (ICS)
* LCD joystick with colour screen, battery indicator, mode and profile button, speed selection, horn and 3.5mm mono jacks
* LCD joystick with heavy duty gimble
* Optional joystick knobs
* Retractable joystick mount
* Stealth gatlin midline mount. This mount easily attaches to any armrest style. It is able to swing away to assist with transfers, yet provides a firm foundation of support when in place.
* Enhanced steering performance (ESP) unit
* Omni control module with infra-red
* R-Net Bluetooth mouse module
* Input/output module
* Attendant control joystick
* Co-pilot attendant control
* Remote stop system
* LED lighting package
* Alternate drive systems - compact joystick, compact lite joystick, compact advanced joystick, mini joystick, manual and powered chin boom, sip 'n' puff, total head array, proportional foot control, proportional head control, tablet control, VIC proportional finger control

Seat
* Power tilt-in-space from 0 degrees to 25 degrees
* 10 inches power seat elevate
* Seat width of 17 inches
* Adjustable seat depth from 14 inches to 18 inches
* Choice of leatherette or black mesh ergo seat cushion
* Transfer handles

Backrest
* Power recline backrest from 90 degrees to 175 degrees
* 4 inches mechanical anti-shear
* Choice of solid or ergo backrest for VS seating system
* Backrest reinforcement
* Choice of fixed or swing lateral thoracic supports for ergo backrest
* Stealth swing away lateral thoracic supports
* Adjustable chest bar

Headrest
* Leatherette headrest
* Stealth comfort plus headrest
* Universal headrest adaptor plate

Armrests
* Cantilever style armrests
* Adjustable height and pitch
* Choice of 4 arm pad lengths (10 inches, 12 inches, 14 inches, 16 inches)
* Choice of 2 arm pad styles (leatherette and black fabric)
* 2 inches armrest height extension
* Arm trough adapters
* Armrest side supports

Leg rest
* Centre mounted power elevating leg rest from 90 degrees to 175 degrees
* Choice of leatherette or black mesh knee blocks
* Hip and thigh support pads
* Abductor pommel
* Choice of 2 calf pad sizes

Footplates
* Stand and drive leg rest/footplate assembly
* Choice of one piece or two piece, angle adjustable, flip back footplates

Wheels
* 12 inchesx2.5 inches drive wheels
* Choice of pneumatic or flat free (with gel insert) tyres

Castors
* 8 inchesx2 inches polyurethane castors

Batteries
* 2 x 72amp (Group 24) batteries
* 8amp battery charger

Motor
* 2 x two pole motors
* Single lift tab disengagement mechanism

Brakes
* Electromagnetic brakes

Colours
* Choice of 6 shroud colours
* Choice of 14 hub cap colours

Transport or Dismantling
* Front and rear transit approved tie-down points
* Permolock C locking base and plunger
* Rear transit approved tie-down point extension kit

Optional Accessories
* Armrest pouch
* Self-leveling cup holder
* Push handles
* Medical necessities bag
* Essentials carrier case
* Bag hooks
* Tray
* Bodypoint padded hip belt
* Bodypoint chest strap

Considerations

Transport Accessibility
The space allowed on public transport for carrying mobility equipment is an area of 1300mm by 800mm.

Wheelchair spaces
All new Sydney buses feature special 'kneeling suspension' and a ramp to provide easy access for less mobile passengers.

There are spaces for two wheelchairs on the new buses. These will accommodate most manual and electric wheelchairs with maximum length 1250mm, maximum width 750mm, maximum turning circle1500mm and maximum weight 200kg.

For safety reasons, passengers in wheelchairs are advised to face the back of the bus, bracing their wheelchair against the side of the space, applying the brakes and securing the seat belt of the wheelchair.

Wheelchair accessible buses display a blue and white wheelchair sign on the front of the bus, and on the easy access door.

Occupied Wheelchair in a Car
A person sitting in a wheelchair within a car or van requires certification and RMS (Roads and Maritime Services) approval for the wheelchair and occupants restraint system where the wheelchair or occupant are restrained to the vehicle structure. RMS approval is not required for a postural support, such as a harness, that is only attached to the wheelchair and not to the vehicle.

Wheelchair Restraints
When transporting a person in a wheelchair in a car or van, both the occupant and the wheelchair require a Roads and Maritime Services (RMS) approved restraint system. The wheelchair and the occupant need to be separately secured to the vehicle itself.
RMS approval is not required for a postural support, such as a harness that supports the user in the wheelchair but is not part of the vehicle restraint system.
The use of a headrest is not legally required but strongly recommended. Easily detachable, folding headrests which fit a wheelchair with standard push handles are available. Contact the supplier or refer to section Wheelchair, Scooter, Cushions, ramps / Postural Supports - Seating System: Restraint+Head+Back+Seats

Place Of Manufacture

Permobil (Sweden/United States of America)
www.permobil.com

Price Guide

Subject to full assessment and evaluation - $25,000 +

Models

Only one model available

Options

Optional Accessories
* Armrest pouch
* Self-leveling cup holder
* Push handles
* Medical necessities bag
* Essentials carrier case
* Bag hooks
* Tray
* Bodypoint padded hip belt
* Bodypoint chest strap

Additional Dimensions

Maximum speed........ 6.5km/hr
Range................ 40km
Length (overall)..... 1030mm
Turning radius....... 660mm
Maximum slope........ 10 degrees up / 10 degrees down
Seat elevator........ 255mm
Tilt................. 0 degrees to 25 degrees (power)
Recline.............. 90 degrees to 175 degrees (power)
Elevating legrests... 90 degrees to 175 degrees (power)

Maintenance

All wheelchairs require regular maintenance. Refer to User Manual for specific details

Standards

Standards
Some assistive technology needs to meet Australian or other standards. Standards may relate to materials, manufacturing and installation. Products that meet Australian or international standards will have written certification. To find out if a product meets Australian Standards ask the supplier to show you the certificate. For more information about standards also see
www.ilcnsw.asn.au/home/assistive_technology/standards

TGA
Many of the items on the ILC NSW website are categorised as a Medical Device. Medical devices that are approved for use in Australia have been entered into a national database called the Australian Register of Therapeutic Goods (ARTG), which is maintained by the Therapeutic Goods Administration (TGA). You can ask the supplier for the ARTG number for the device you wish to purchase and search the ARTG for the entry. To access information on the ARTG visit www.tga.gov.au

When buying a medical device it is advisable to only choose a medical device that is recommended by a healthcare professional and has been included on the ARTG.

Licence & Insurance Requirements

In NSW, motorised wheelchairs that weigh less than 110 kg and cannot travel at more than 10 km/h do not have to be registered, provided they are being used by a person with mobility problems. A person driving a motorised wheelchair under these circumstances is defined as a pedestrian under the Australian Road Rules and is permitted to travel on a footpath or nature strip adjacent to the road.

Vehicles exempt from registration are covered by the nominal defendant scheme (administered by the Motor Accidents Authority) if they are at fault in an accident in NSW on a road or road-related area and cause injury to another person. However, this cover is only valid in NSW.
