Short Description

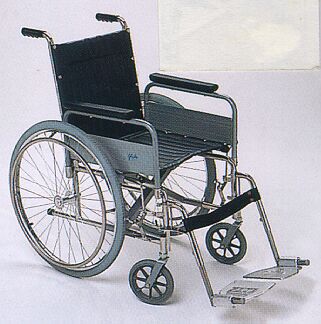

A rear wheel drive wheelchair featuring a crossover folding mechanism which has a lockout action to provide a firm base of support. It is built for a heavy user and can be customised to user specifications. It is available with six seat widths from 400mm to 550mm. Available as a Standard chair with 100kg load capacity or a reinforced Heavy Duty Chair with 180kg load capacity.

Options

* Adjustable Height Armrests
* Manual Elevating Leg rests
* Stump Supports
* Vertical Leg rests
* One Piece footplate
* Aluminium Footplate
* Backrest Extension
* Vertical Backrest

Additional Dimensions

Length............1050mm (this will vary depending on seat depth specified)
Width............. (varies as the chair width increases or decreases, e.g. 400mm wide chair width = 600mm width)
Seat Depth.... 400mm, 430mm or 460mm

More Details

G3 Series manual chairs have been designed for the individual who requires an everyday wheelchair to provide support and comfort. The chair is suited to customizing for different types of seating options eg. Postural inserts and seating modules with bi-angular back.
Frame
Stainless steel with aluminium crossbar folding mechanism and lockout action. Tipping lever at rear for assisted kerb mounting. The lock out frame is to compliment pressure management cushions or postural inserts.

Armrests
Full length, removable armrests with press button locking release mechanism are standard. Armrests are made of aluminium with vinyl upholstered padding. Desk arms are optional.

Legrests / Footrests
Stainless steel, swing away, adjustable length, removable footrests with aluminium footplates. Calf straps are standard.

Upholstery
Hardwearing vinyl upholstery.

Sizes
There are six seat widths available 400mm, 430mm, 460mm, 490mm, 520mm, 550mm and five seat depths, 400mm standard (unless otherwise requested), 430mm, 460mm, 490mm, 520mm.

Wheels
610mm pneumatic tyres. Pneumatic.
Castors
175mm x 25mm Microcellular Solid
.
Brakes
Manual either push on or pull on.

Customising
e.g. seat depth can be made longer or back made higher.

Application
May be suitable for bariatric use up to the specified load capacity.

Factors To Consider

Wheelchair Restraints
When transporting a person in a wheelchair in a car or van, both the occupant and the wheelchair require an RTA approved restraint system. The wheelchair and the occupant need to be separately secured to the vehicle itself.
RTA approval is not required for a postural support, such as a harness, that supports the user in the wheelchair but is not part of the vehicle restraint system.
The use of a headrest is not legally required but strongly recommended. Easily detachable, folding headrests which fit a wheelchair with standard push handles are available. Refer to section Wheelchair, Scooter, Cushions, ramps / Postural Supports - Seating System: Restraint+ Head+Back+Seats

Place Of Manufacture

Lendal (WA) Australia

Standards

This product has been tested and complies with AS 3695-1992 Wheelchairs - Product requirements with a user weight of 100kgs.
