Short Description

A mobile, battery powered hoist which is a combination of a regular hoist, standing hoist and walking tutor. Can be used to transfer a person from bed, chair, commode etc either as a lifting hoist or a standing hoist. Removal of the padded knee pad allows the hoist to be used as a rehabilitation walker. Suitable for domestic and healthcare facility settings.

Models

Multi-Lifter KH401 150kg load capacity
Homecare lifter KH402 150kg load capacity
Swift-Lift KH404 150kg load capacity
Ezy-Lift KH405 225kg load capacity
Maxi-Lift KH408 350kg load capacity

Additional Dimensions

Spreader Bar Height (Standing) NSW........................... From 830 mm to 1760 mm
Spreader Bar Height (Leg Gating Walker) NSW........................... From 510 mm to 885 mm

More Details

Frame
The Multi Lift is constructed from epoxy coated rectangular steel tube.

Boom Spreader Bar

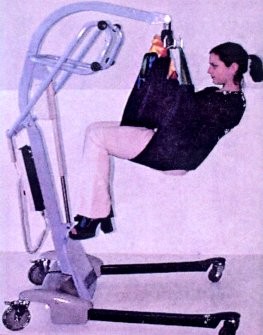

Standard hoist
The curved lifting boom is moved up and down via a hand held control attached to a controller and batteries. The distal end of the boom is used when the Multi Lift operates as a standard hoist and can be removed easily through releasing a locating pin when the Multi Lift
operates as a standing hoist or walker. The boom terminates in a spreader bar which provides 6 point attachments for slings.

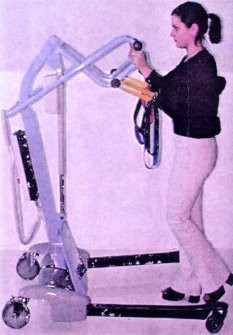

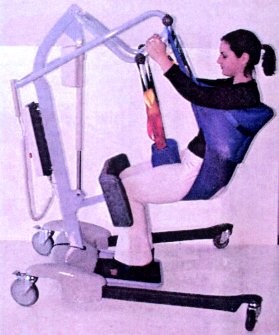

Standing hoist / walker
Integral with the boom is a frame which acts as the sling attachment point and hand grips when the Multi Lift is used as a standing hoist. It has a curved and cushioned knee pad which is used when the Multi Lift is used as a standing hoist.
The pad can be removed and can be stored on the frame when being used as a walker or standard mobile hoist.

Base
The U shaped mobile base is adjustable in width by using the hand control. The base is articulated separately from the rear castors.
This allows the base width to be adjusted whilst the brakes are on. The legs are polyurethane coated for cushioning and to protect walls and furniture.
There is a plastic cover where the base of the mast meets the U shaped base of the hoist.

Castors
Rear locking polyurethane 150mm diameter; front castors are 100mm diameter swivel polyurethane. Optional 100mm and 75 mm castors are available to provide lower clearance of the ground.

Slings
Can be used in conjunction with the Kerry Equipment range of slings.
Slings are available as general purpose, general purpose with head support, full body with divided leg, hammock, toileting and padded standing hoist and seating / transport slings

Dismantling
Boom can be partially removed. Knee pad can be removed.

Controls
Hand held on an extendable cord. A hook attachment on the control unit allows the controls to be hooked over the frame. There is an emergency stop and lower button on the mast.

Power Source
Through a battery located on the outside of the mast of the hoist.

Battery Recharging
Achieved by removing the battery from the hoist and locking it into to the supplied separate battery charger.

Safety Features
* Automatic cut out switch in the event of the boom encountering an obstruction.

Factors To Consider

It is recommended that prior to using this product, training in manual handling and the correct use of assistive devices should be undertaken.

Place Of Manufacture

WA Australian made

Standards

For some types of equipment, specific Australian Standards are applicable to the materials used in, and the manufacturing processes applied to products. Compliance with relevant Standards is indicated by written certification that a product has been tested and assessed as compliant with specified Australian Standards. Purchasers are advised to check with the supplier or manufacturer of an item as to its compliance with the relevant Australian Standard(s)
