More Details

Frame
* Rigid rotational tilt in space frame
* Height and angle adjustable push handle
* COG adjustable seat frame
* Available in 17 colours

Seat
* Padded seat and backrest are available
* Wheelchair is compatible with a variety of seating systems
* Seat width, depth and backrest height are adjustable in 13mm increments using an Allen key
Options
* Solid seat pan
* Drop seat solid seat pan
* Pelvic belts

Backrest
* Stroller handle push handles are standard
Options
* Height adjustable angle adjustable stroller handle
* Dynamic backrest canes
* Reclining back

Armrests
* Single post armrests are standard
Options
* Flip backpost height adjustable desk or full armrests are available
* Dual post height adjustable are available

Tilt in Space

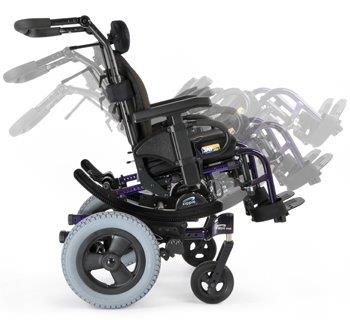

* The tilt in space function operates using a rotational tilt system
* The seat rotates in relation to the base through a range of 55 degrees and is operated by a foot release tilt actuator
* The tilt range can be set in three different positions: -5 to 50 degrees, 0 - 55 degrees and 5 - 60 degrees. The angle of tilt is visible on both sides of the base through a spirit level

Footplates
* Swing in swing out legrest hangers
Options
* A range of footrests are available including composite, aluminum angle and depth adjustable footrests as well as platform footrests.

Rear Wheels
* Lightweight quick release wheels are standard Mags or spoke. Wheels are available in 12,16,20,22, or 24 "
* Pneumatic tyres are standard
* The quick release axle plate can be repositioned to accommodate each size
Options
* One arm drive available
* Power Add on

Front Castors
* 4 to 8 inch castors are available as solid, soft roll, light up or alu rim
* The castor forks feature two height positions. Castor forks are selected to suit the rear wheel size

Brakes
* A push lock or foot lock is standard
Options
* Drum brakes, hub locks

Dismantling
* Although the frame is rigid the wheelchair can be reduced to a more compact shape by removing the legrests, armrest and headrest

Option Details
* Frame: transport tie down points, drop seat
* Armrests: desk style, gutter trough, height adjustable
* Legrests: hanger angle options: 60, 70, 80, 90 degrees, elevating with padded calf supports
* Tyres: solid, thorn resistant
* Push rims: rubber coated, thumb grips
* Upholstery: vinyl, velour
* Backrest: height extension in 100mm gradients between 100mm - 400mm
* Anti tip Bars: fixed, removable
* Covers: sheepskin covers for armrests, footplates, seat and backrest
* Brakes: rear mounted, extension handles

Place Of Manufacture

United States of America

Price Guide

From $3300.00

Models

One model only

Options

* Transport tie down points
* Drop seat
* Solid seat pan
* Armrests: desk style
* Armrests: gutter trough
* Armrests: height adjustable
* Legrest: hanger angle options
* Tyres: solid, thorn resistant
* Push rims: rubber coated, thumb grips
* Upholstery: vinyl, velour
* Backrest height extension
* Anti tip Bars: fixed, removable
* Sheepskin covers
* Brakes: rear mounted, extension handles
* Pelvic belts
* Vent base
* Spoke guards
* Lap tray
* Harnesses

Additional Dimensions

Length..............800 mm
Width...............710 mm
Seat Front Height.. 320 to 500 mm
