More Details

NOTE
Foot position is as close to the floor as possible to maintain normal eye contact with peers.

FRAME
fixed frame made from wooden and steel materials

FINISH
varnished

MATERIAL OF SUPPORTS
vinyl, padded

ADJUSTABLE FEATURES
Infinite adjustment within limits
Steel frame is designed to tilt and lock at any angle from horizontal to vertical
Head position is adjustable
2 pairs padded lateral supports
2 body straps with quick release buckles can be located in any position along the upholstered backrest (32 mm x 900 mm)
Knee / leg positioning assembly is fully adjustable to best suit user and condition
Heel to axilla Variable adjustment
Booster base reduces length / height to suit client
Knee / leg saddle bar and clam bar assembly Can be positioned to suit client and condition

TRAY
Activity tray tilts with stander (angle adjustable bracket will be available soon)

METHOD OF ADJUSTMENT
All adjustments are made with hand screws and nuts or with the use of a Phillips screw driver

CASTORS
Large non marking castors for quiet and smooth movement. Front wheels are directionally lockable for easier steering, and to facilitate the footplate when fully upright, while the rear wheels are fully lockable for safety

Option Details
. Scooped headrest can be replaced with flat cushion if required at no extra cost. Specify when ordering
. SF41 Large activity tray (#2) with lip around three sides and body cut out. complete with fittings to adjust ACC22/ACC7
. Grip bar and/or overhead Toy bar can be fitted to the tray
. ACC15 Chest pad can be fitted to the tray (with some children this can be enough to prevent the user from slumping over the tray when fully or near upright - can be an alternative to 6 point harness
. REST33 Six point harness can be supplied (fix points at waist, chest and over shoulders)
. ACC34, 35 & 36 Taddy heel cups for positive foot positioning (supplied for fitting by client therapist - specify size)
, REST 22, 23, & 24 Extra straps with quick release buckles (32 mm x 1100 mm, 1200 mm & 1400 mm)
. REST 25, 26 & 27 Elastic chest strap (75mm) with velcro close (700 mm, 800 mm & 900 mm)
. SF43 Booster base for children shorter than 1000 mm tall (the booster base effectively reduces the overall length of the main board by adding a temporary foot plate which can be located to suit the client - when no longer required it is simply removed)

Place Of Manufacture

Disabled Equipment Solutions (Vic) Australia

Price Guide

Price from DES

Models

Only one model is available

Options

* Flat cushion headrest
* SF41 Large activity tray (#2
* Grip bar on tray
* Overhead Toy bar on tray
* ACC15 Chest pad on tray
* REST33 Six point harness
* ACC34, 35 & 36 Taddy heel cups
* Extra straps with quick release buckles
* Elastic chest strap (75mm)
* Booster base for shorter children

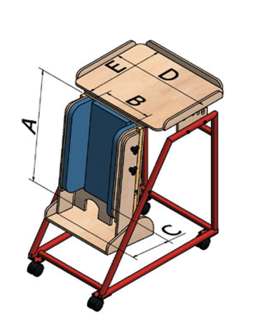

Additional Dimensions

Width between laterals 190mm to 300mm
Head support width 140mm to 200mm
