Short Description

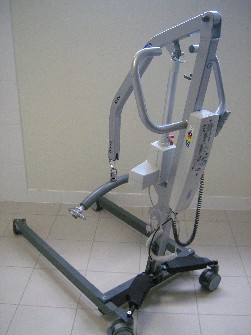

The hoist features a motorised component that allows the attendant to move the hoist and occupant via a motor in a forward or reverse direction. The hoist can be used as a stand up or a full lift hoist by removing and storing the knee pad at the rear of the mast and folding the footplate upwards. The boom can lower to the ground for a lift from the floor.

Options

* Padded vinyl calf strap
* Range of Kerry slings available

Models

Kerry Multi Drive KH401DU-Multi Drive

Additional Dimensions

Weight (kg) NSW................................... 60 kg
Speed (km/hr)..................................... From 0 km/h to 3 km/h (From 0 km/h to 2 km/h when reversing)
Range (km)........................................ From 10 km to 20 km

More Details

Frame Finish
Epoxy powder coated. Polyurethane coating on legs of base. Overall finish in PVC.

Mast
Single column mast. Kneepad is positioned on the front of the mast facing the user when the hoist is to be used in stand up function, otherwise the kneepad can be stored at the rear of the mast.

Drive System Operation
Forward and Reverse toggle on motor. Single handed forward/reverse. Pull lever to go forward. Push lever away to reverse hoist. Motor control is positioned in the centre of the drive wheel. On and Off switch Speed Control Motorised drive wheel is positioned in front of larger wheel at the rear of the hoist. When the motor is turned on and the lever pulled the drive wheel lowers and engages with the ground to drive the hoist in a forward or reverse direction. Drive wheel retracts upwards under cowling when not in use.

Power Supply
2 X 12 volt/20amp SLA battery
Plug in rechargeable battery system. Audio low battery warning alarm. Emergency stop located on battery

Base
Moulded plastic cover at rear of base. Slip resistant upper surface on the fold up footplate. The leg position can be altered electrically.

Boom
Padded Long arc reach

Spreader Bar
Polyurethane coated. When used as a full lift hoist features three hooks at each end.

Push Handle
Wide push handle mounted from mast.

Occupant Hand Grip
Closed loop handle extends from mast for sling attachment and occupant hand grip when used in stand up mode

Sling Attachment Points
Four attachment points when a stand up sling is used. Two attachment points are on each side of the handgrip supports.

Control
The hand held control is attached to the hoist with a curly cord and features two speed operation for lift and lowering

Maintenance

Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.

Standards

Specific Australian Standards or other Standard(s) may be applicable for materials, manufacturing processes, or installation of some types of equipment. Compliance with relevant Standards is indicated by written certification that a product has been tested and assessed as compliant with specific Standards. Purchasers are advised to check with the supplier or manufacturer of this item as to its compliance with relevant Standard(s).

Hoist complies with International Standards ISO10535

Place Of Manufacture

WA Australia
