More Details

Materials

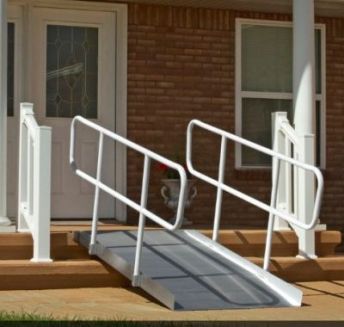

* Welded aluminium ramp with powder coated aluminium hand rails
* Weather resistant

Features
* Slip resistant surface
* Maximum ramp capacity 192.5 kg (one axle) 385 kg (two axles)

Considerations

The Ontrac Ramps do not comply with Australian Standards and therefore cannot be used in public places. The handrails do not extend to the required distance from the end of the ramp. The gradient of the ramp is variable and dependant on the installer/purchaser to install so its not too steep. The gradient depends on the the height of the steps / ground that the ramp is to bridge. It is important that the gradient is safe for the user. It is advisable to discuss the appropriateness of the ramp with an occupational therapist.

The manufacturer recommends that this ramp be screwed down for safety so it will not move. The ramp is not designed to be portable, however it is very easily transferable if you move address.

Place Of Manufacture

PVI (Prairie View Industries) - United States of America

Models

One model is available in six sizes

Options

* Replacement traction tape

Additional Dimensions

XPS1036
Load Capacity (supplier stated) NSW............... 385 kg (two axles)
Weight (kg) NSW................................... 50 kg
Length NSW........................................ 3050 mm
Height NSW........................................ 50 mm
Width NSW......................................... 915 mm

XPS436
Load Capacity (supplier stated) NSW............... 385 kg (two axles)
Weight (kg) NSW................................... 22.3 kg
Length NSW........................................ 1220 mm
Height NSW........................................ 50 mm
Width NSW......................................... 915 mm

XPS536
Load Capacity (supplier stated) NSW............... 385 kg (two axles)
Weight (kg) NSW................................... 26.82 kg
Length NSW........................................ 1520 mm
Height NSW........................................ 50 mm
Width NSW......................................... 915 mm

XPS636
Load Capacity (supplier stated) NSW............... 385 kg (two axles)
Weight (kg) NSW................................... 32.3 kg
Length NSW........................................ 1830 mm
Height NSW........................................ 50 mm
Width NSW......................................... 915 mm

XPS736
Load Capacity (supplier stated) NSW............... 385 kg (two axles)
Weight (kg) NSW................................... 36.82 kg
Length NSW........................................ 2130 mm
Height NSW........................................ 50 mm
Width NSW......................................... 915 mm

XPS836
Load Capacity (supplier stated) NSW............... 385 kg (two axles)
Weight (kg) NSW................................... 41.36 kg
Length NSW........................................ 2440 mm
Height NSW........................................ 50 mm
Width NSW......................................... 915 mm

Installation

The ramps have a 2" (50mm) lip that sits on top of the landing. There are holes provided top and bottom and concrete screws are provided for securing the ramp in position.

There is minor assembly required to assemble the handrails as the Ramps are flat packed. The supplier can provide this assembly service if the ramp is purchased locally.

Standards

Some assistive technology needs to meet Australian or other standards. Standards may relate to materials, manufacturing and installation. Products that meet Australian or international standards will have written certification. To find out if a product meets Australian Standards ask the supplier to show you the certificate. For more information about standards also see http://at-aust.org/home/assistive_technology/standards.html
