Short Description

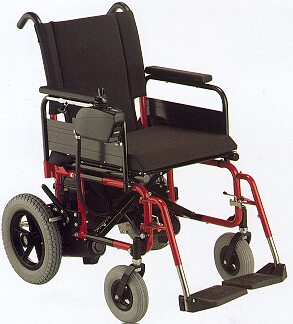

An aluminium folding electric wheelchair available in 4 seat widths and 3 seat depths, a choice of TP rubber or pneumatic front castor and choice of frame colour. Standard features include detachable swing away footrests, removable lockable padded armrests, leg strap, left or right hand control, 26 amp hr battery.
Options
Seat belt, heel loops, tray, wheelchair carrier, armrest trough, anti tip bars with rollers, backrest extension, backrest upholstery tightener, amputee stump support, elevating legrests with calf supports, lambswool covers, padded backrest (nylon material), covered foam cushion.
| Specification |
Standard |
| Armrest Height (from seat) |
Unknown |
| Backrest Height |
0 mm, Can be customised. |
| Load Capacity (supplier stated) |
100 kg |
| Seat Depth |
From 370 mm to 600 mm ( in 30mm increments) |
| Seat Height |
From 400 mm to 530 mm |
| Seat Width |
From 370 mm to 520 mm |
| Width |
Unknown |
Additional Dimensions
Weight Overall 35 kg
Diameter (Castors) 180 mm
Diameter (Wheels) 300 mm
Performance Specifications
Batteries 2x12 volt 24Amp dry cell (sealed)
Speed Range 0 - 7 kph
More Details
Frame: Powder coated aluminium. Standard colours red, blue, yellow, black. Folds for transportation or storage.
Wheels: 300 mm diameter pneumatic.
Castors: Choice of 180 mm TP rubber or 200 mm pneumatic.
Upholstery: Black vinyl.
Armrests: Removable, lockable, padded, optional adjustable height.
Backrest: 3 Standard heights, optional manual or electric recline.
Footrests: Detachable, swingaway with leg strap.
Controls: Left or right hand control or optional chin, attendant
control or sliding control box.
Brakes: Electrodynamic.
Battery: 26 amp battery dry cell gel.
Dismantling: 4 components - folded frame, armrests, footrests, batteries.
Place Of Manufacture
GLIDE PRODUCTS (WA)
Australia
Licence & Insurance Requirements
Registration requirements
In NSW, motorised wheelchairs that weigh less than 110 kg and cannot travel at more than 10 km/h do not have to be registered, provided they are being used by a person with mobility problems. A person driving a motorised wheelchair under these circumstances is defined as a pedestrian under the Australian Road Rules and is permitted to travel on a footpath or nature strip adjacent to the road.
Vehicles exempt from registration are covered by the nominal defendant scheme (administered by the Motor Accidents Authority) if they are at fault in an accident in NSW on a road or road-related area and cause injury to another person. However, this cover is only valid in NSW.
