Short Description

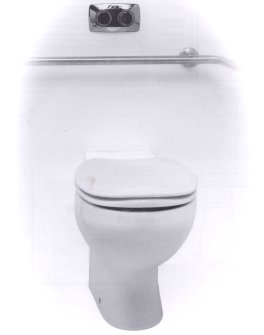

A vitreous china, wall faced box rim toilet pan designed to allow wheelchair access. Designed to provide a raised seat height of between 460 mm - 480 mm. Available in white only. Toilet pan is AS1428.1 compliant.
Options
Colani or Pedigree seats
Models
One model is available
Toilet Seats (recommended)
1. Pedigree II Care Seat height 470mm Code No 320010
2. Colani Seat height 470mm
Double flap with Leda hinges - Code No 813100
Single flap with Healthcare facility hinges (recommended) - Code No 813000
More Details
*A wall faced pedestal back inlet 6 litre full flush pan installation designed to provide a raised seat height of between 460 - 480mm for persons with special needs.
*Universal trap
*Can be coupled with 6/3 litre Water Wafer Mk3 concealed cistern
*6 litre full flush pan. Suitable for installation with 9/4.5 litre cisterns.
*White only.
*Recommend for use with Caroma Pedigree or Colani seats.
*For compliance to AS 1428.1 it is necessary to locally extend the wall
out to provide the minimum pan projection of 800 mm to the front of the
pan.
Installation
Must be installed by a licensed plumber.
In public buildings, toilet pans and cisterns must be installed in accordance with AS1428: Part 1.
For wheelchair access, the pan when installed must be a minimum of 800mm from the front of the pan to the finished wall and provide a seat height of 460 to 480mm. For people with ambulant disabilities the pan can be fitted directly to the existing wall without the need to locally extend the wall.
Place Of Manufacture
Caroma Fowler Pty Ltd (Australia)
Standards
Some assistive technology needs to meet Australian or other standards. Standards may relate to materials, manufacturing and installation. Products that meet Australian or international standards will have written certification. To find out if a product meets Australian Standards ask the supplier to show you the certificate. For a fact sheet about standards contact us or visit www.ilcaustralia.org/home/standards.asp
