Short Description

Aquablend TMVs provide scald protection in basins, showers and baths ? as required by the plumbing code with two models also approved by NSW Health. There are four valves to suit various applications from domestic to commercial and healthcare facility installations. A single TMV can provide multiple outlet operation.

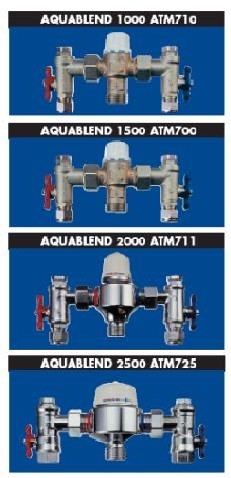

Models

ATM710 - Aquablend 1000 - Domestic and commercial applications
ATM700 - Aquablend 1500 (NSW Health Approval) - all rounder with Healthcare approval
ATM711 - Aquablend 2000 (NSW Health Approval) - Healthcare preferred

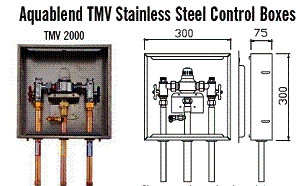

ATM725 - Aquablend 2500 - High flow eg. shower blocks Also available in lockable stainless steel enclosures

More Details

.The valves deliver stable temperature warm water, even under changing inlet and pressure conditions with rapid thermal shut-off capability in the event of inlet water supply failure
. Many of the features exceed industry standards.

FEATURES
. Ambient start up control. Ability to control water temperature spikes during ambient start up
. Scald protection / thermal shock. The valve will also shut down in the event of hot water failure. The valve quickly reinstates flow when normal supply resumes
. Constant mix control. Water temperature is maintained at plus or minus 2 degrees, even during water temperature or pressure fluctuations.
. Each unit comes complete with combination isolating ball valve, non-return and dual-stage strainer assemblies, which incorporate water pressure/temperature test ports.
. Installation versatility. Each TMV can be installed in any configuration with the water outlet in the horizontal or vertical (up or down) position, and inlet connections can be rotated to suit inlet pipework.
. Easy maintenance The compact component assembly design allows low-cost, in-situ servicing and ensures minimum downtime. Flat-faced connections allow removal of the valve without disturbing the pipework.
. Performance at low pressure. Aquablend is suitable for installation in low pressure systems and will operate with a working pressure as low as 10kPa.
. Safety lock shield. The TMV is supplied as standard with a temperature lock shield to prevent unauthorised changes to the water temperature.
. Technical support Each TMV is supplied with a detailed technical manual to facilitate valve sizing, installation, commissioning, maintenance and troubleshooting.
. Standards Marked to AS4032.1 - Thermostatic Mixing Valves

Installation

. Must be installed by a licensed plumber in accordance with the Plumbing Code of Australia.
. An appropriately qualified installer must complete commissioning.
. Supplied with installation instructions.
. Contact Enware for technical information.

Standards

Some equipment needs to meet Australian or other standards. Standards may relate to materials, manufacturing and installation. To find out if a product meets Australian Standards check with the supplier. For products that require testing, look at the Novitatech website: www.novitatech.org.au/content.asp?p=277

Complies with:
AS/NZS3718AS3500.4

Place Of Manufacture

Australia
