Short Description
The Hansa Medica is a chrome single lever mixing tap for a basin and shower. It has 150mm length solid lever and is fitted with a ceramic disc cartridge. The outlet is fixed. Suitable for healthcare, commercial and domestic use.
Models

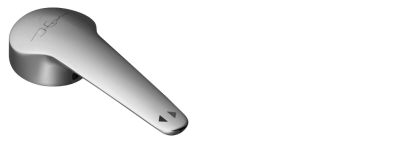

Medica Operating Lever
Laser etched markings
Back or palm of hand operation possible
Lever suitable for commercial / disabled applications
Special light alloy version
Lever length = 150mm
Product codes:
Medica Chrome (Hot + Cold) 1880009.00
Medica Chrome (Warm + Cold) 1880009.47
Medica Basin Mixer
Fixed cast outlet with cascade-aerator
Lever suitable for disabled use
Maximum Surface Thickness = 35mm
Projection = 111mm or 147mm
Flowrate = 13 l/min @ 300kPa (flow pressure)
Product codes:
Chrome (Hot + Cold 147mm) 1506206.00 S
Chrome (Warm + Cold 147mm) 1506206.47 S
Chrome (111mm - Prado) 1416206.00 S
Chrome (Warm + Cold 111mm) 1416206.47
Medica Piccolo Shower Mixer
Complete set includes installation unit & trim kit
Installation body is Hansa P1000100
Trim kit comprises lever, sleeve & backplate
Backplate = 100mm diameter
Flowrate = 19 l/min @ 300 kPa (flow pressure)
Product codes:
Complete Sets:-
Chrome (Hot + Cold) 1490106.00 S
Chrome (Warm + Cold) 1490106.47 S
Components:-
Chrome Trim Kit (Hot + Cold) P1499106.00 S
Chrome Trim Kit (Warm + Cold) P1499106.47 S
Piccolo Body P1000100
More Details
Type: available as solid straight lever in various lengths; tap projections are 111mm or 147mm
Application: basin and wall mounted shower
Mounting options: wall or hob
Operation: temperature is adjusted by horizontal movement of the lever, rate of water flow is adjusted by vertical movement of the lever.
Finishes and colours:chrome; available with laser etched hot / cold or warm / cold indicators
Hansa ECO (Hansaeco) Control Cartridge
. In all Hansa single lever mixers
. Dual stage opening and temperature limiting ring
. The water volume restrictor allows the water flow rate to be individually adjusted.
. The adjustable hot water ring reduces the risk of scalding and saves energy.
. In built sound restrictors
Installation
. In public buildings, taps should be installed by a licensed plumber to comply with AS 1428
Standards
For some types of equipment, specific Australian or other Standard(s) are applicable to the materials used in, the manufacturing processes applied to and the installation of products. Compliance with relevant Standards is indicated by written certification that a product has been tested and assessed as compliant with specified Standards. Purchasers are advised to check with the supplier or manufacturer of this item as to its compliance with relevant Standard(s).
This product is manufactured to Australian Standards Mark AS 3718
Place Of Manufacture
Germany
