Short Description

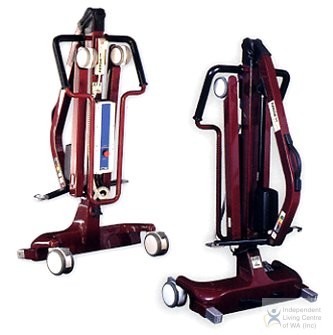

A mobile, battery powered hoist with an aluminium frame and a standard spreader bar. Used to lift and transfer persons from a seated or lying position, or to and from the floor. Hoist is folding and dismantles into five parts for transport. Suitable for domestic use. Available with a load capacity of either 150kg or 200kg.
Options
* Four models of yoke
* Strap Extension Kit
* Pivoting frame
* Weighing device
Models
Panda 150 model is available with a load capacity of 150kg
Panda 200 model is available with a load capacity of 200kg
| Specification |
Standard |
| Base Height (clearance) |
115 mm |
| Base Length |
1100 mm |
| Base Width Maximum (int measurement open) |
Unknown |
| Base Width Minimum (ext measurement closed) |
Unknown |
| Height |
Unknown |
| Load Capacity (supplier stated) |
150 kg |
| Spreader Bar Height |
From 350 mm to 1750 mm |
| Tilting Frame Height |
Unknown |
| Weight of Heaviest Part |
15.5 kg |
Additional Dimensions
Weight (kg) NSW................................... 32.5 kg (without battery)
Weight of Battery (kg)....................................... 3 kg
More Details
Materials
The hoist is constructed from aluminium and has a polyurethane coating and folds and dismantles into five parts for transportation.
Boom
It has an angled lift boom with a padded spreader bar with a hook on each side. A U shaped push is mounted at the top of the mast.
Base
The U shaped base is opened and closed using the touch pad on the electric hand held control.
Castors
Swivel style, front twin castors are 100mm in diameter and rear braked castors are 125mm in diameter.
Controls
Electric Controls are hand held on an extendable cord with a clip that attaches it to the hoist when not in use. The remote control handset operates the hoist mast and the leg width adjustment.
Power Source
Battery mounted on the mast of the hoist. There is a light indicator for battery voltage level.
Battery Recharging
Achieved by removing the battery and placing it into the suppled battery charger, connected into a mains power point.
Portability
The hoist can be dismantled into five pieces and folded for transportation.
Safety Features
* Emergency stop button
* Battery voltage indicator
* Emergency lowering
* Anti crush cut out.
Slings
Purchase separately to hoist
Caution
It is recommended that prior to using this product, training in manual handling and the correct use of assistive devices should be undertaken.
Standards
Specific Australian Standards or other Standard(s) may be applicable for materials, manufacturing processes, or installation of some types of equipment. Compliance with relevant Standards is indicated by written certification that a product has been tested and assessed as compliant with specific Standards. Purchasers are advised to check with the supplier or manufacturer of this item as to its compliance with relevant Standard(s).
This product has been tested and complies with AS ISO 1035:2002 standards, tested up to 150kg static weight load in a NATA Accredited Laboratory.
Place Of Manufacture
Alrok Patient Handling Systems (NSW) Australia
