Short Description

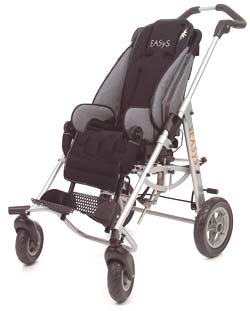

A lightweight, aluminium frame, folding four wheeled buggy with tilt in space, recline and adjustable positioning. The seat is reversible on the frame. Two growth adjustable seat sizes are available to suit children between the approximate ages of 3 and 12 years. A height adjustable indoor base and a range of accessories are available.

Options

* Standard laterals
* Flexi laterals
* Swing away laterals (Spex)
* Standard head laterals
* Soft head pillow
* GPS lateral head support
* GPs occipital head support
* Standard H Harness
* Padded H harness
* Centre point harness
* Crotch strap
* Soft pelvic harness
* Standard foot straps
* Ankle huggers
* Taddy foot cups
* Abduction pommel
* Sun canopy (mounted onto seating unit)
* Adjustable tray table
* Hi Lo indoor base
* Grip rail

Models

Jazz Easys Size 1
Suitable for children between the approximate ages of 3 to 6 years.

Jazz Easys Size 2
Suitable for children between the approximate ages of 7 to 12 years.

A lightweight model is also available (Jazz Easys Light). Overall weight 11.9kg.

Additional Dimensions

Jazz Easys Size 1
Width.....................630mm
Length....................1000mm
Height....................1040mm
Seat Front Height.................510mm
Folded Length.............880mm
Push bar height...................920mm - 1140mm
Lower leg length..................170mm - 300mm
Knee angle........................90 - 180 degrees
Foot angle........................90 degrees
Footrest width....................285mm
Footrest length...................145mm
Tilt in space angle...............5 - 40 degrees
Recline angle.....................90 - 180 degrees
Weight (base).....................8.9kg
Weight (seat unit)................7.7kg

Jazz Easys Size 2
Width..................... 680mm
Length.................... 1110mm
Height.................... 1110mm
Seat Front Height................. 540mm
Folded Length............. 990mm
Push bar height...................920mm - 1200mm
Lower leg length..................250mm - 360mm
Knee angle........................90 - 180 degrees
Foot angle........................90 degrees
Footrest width....................345mm
Footrest length...................200mm
Tilt in space angle...............5 - 40 degrees
Recline angle.....................90 - 180 degrees
Weight (base).....................9.4kg
Weight (seat unit)................9.4kg

More Details

This buggy is multi adjustable and comes with the Balance Safety System (provides maximum stability in all positions of tilt and recline). Designed to adjust and grow with the occupant.

A fabric under seat basket is included.

Frame
Aluminium folding frame

Adjustable features
Seat depth and width, back height, lower leg length and knee angle are adjustable

Seat
* The seat unit can face forward or rearward in the buggy base
* See Options for postural accessories

Rear Wheels
250mm polyurethane foam fixed wheels with wheel brakes.

Front Wheels
188mm polyurethane foam swivel wheels (fixed is optional)

Brakes
Located on the rear wheels

Upholstery
* Machine washable 100% cotton fabric
* Removable, washable covers are standard

Footrest
One piece, height and angle adjustable perforated aluminium

Backrest
Reclining and adjustable, and height can also be extended

Headrest
Three types: occipital (small); curved with lateral supports; curved with extended lateral supports (may occlude child's vision)

Push handle
Four set height adjustable settings

Transporting
The base of the buggy can be folded, with or without the seat unit fitted.

Standards

Specific Australian Standards or other Standard(s) may be applicable for materials, manufacturing processes, or installation of some types of equipment. Compliance with relevant Standards is indicated by written certification that a product has been tested and assessed as compliant with specific Standards. Purchasers are advised to check with the supplier or manufacturer of this item as to its compliance with relevant Standard(s).

Place Of Manufacture

Germany
