Short Description

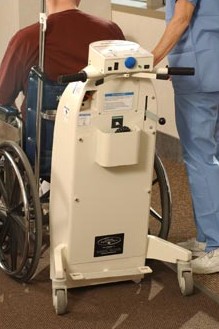

A mobile battery powered transporter for moving a manual wheelchair and it's occupant around a hospital. It has an upright design with two handles and a three wheeled base. It features programmable speed and automatic braking. The Operating controls are located on the top of the unit. Fits all standard wheelchair sizes and models. Suitable for indoor and outdoor use.
Models
Only one model is available
Options
* Oxygen bottle holder
* IV drip holder
Specification |
Standard |
Height |
1041 mm |
Length |
710 mm |
Width |
610 mm |
Additional Dimensions
Load capacity 200kg
Weight 160kg
Speed forward 3mph (adjustable)
Speed reverse 105mph (adjustable)
More Details
Features
* Designed to allow for safe and comfortable movement of wheelchairs for both wheelchair user and carer.
* Compact design for manoeuvrability
* Ergonomically designed handles
* Secures to 355mm to 560mm wide wheelchairs
* Easy to use controls with system status indicators
* Floor friendly non marring solid rubber tyres
* Automatic brake prevents rollback
* Charger interlock prevents drive away
* Hitches: Lever control mechanical locking hitches
Frame
Powder coated steel
Controls
* On / off switch
* Uses a hand lever design that activates the frame of the wheelchair
* Controlled starting and stopping
* Wig wag throttle control
* Hi/Lo speed switch
* Programmable speed
* Warning beeper
* Auto safe start prevents accidental movement
* Auto Overload protection
* System status indicators
* Hitches: Lever control mechanical locking hitches
* Foot pedal centring control
Wheels
* Floor friendly non marring solid rubber tyres
Brakes
* Dynamic regenerative and auto park
* Integrated, automatic parking brake
* Automatic brake prevents rollback
Batteries
* Two 12 volt batteries, 75 amp hours
* On board 6 AMP multi-stage Smart charger
* Charger interlock prevents drive away
* Eight foot charge cord with convenient storage area
Safety Features
* Positive wheelchair locking mechanism
* Automatic security brake prevents rollaway
* Controlled starting and stopping
* Ergonomically designed handles and wig wag throttle
* Hi/Lo speed switch
* Warning beeper
* Auto safe start prevents accidental movement
* Auto overload protection
Benefits
* Patient experiences smoother and safer transport
* Transport team endures less strain and fatigue
* Prevents staff injury risk from heavy loads, ramps, and carpet.
* Quiet operation and compact design
* User friendly controls
* Maintenance free operation.
Standards
Some assistive technology needs to meet Australian or other standards. Standards may relate to materials, manufacturing and installation. Products that meet Australian or international standards will have written certification. To find out if a product meets Australian Standards ask the supplier to show you the certificate. For a fact sheet about standards contact us or visit www.ilcaustralia.org/home/standards.asp
Place Of Manufacture
Dane Technologies Inc (USA)
