Short Description

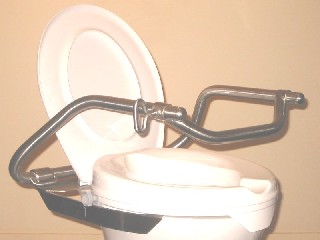

Stainless steel, folding rails that attach to the rear of a toilet pan with bolts. They are available in four different styles. The Darts and Junior Darts models have independent lifting arms. The Econo Darts have fixed rails and are customised for each user. The New Darts have adjustable height handles and accommodate users from 15 to 150kg.

Options

. Bent Grab Rail - Fits both Darts and Junior Darts models only.
It attaches to the two arms to provide support at the front of the user.
. Back rail for back support
. Foot rail for a step and support

Models

JUNIOR DARTS for 3-5 year olds and small adults
Independently lifting (lift up and back) arms enable transfers from either side of the toilet
Dimensions : 220mm above toilet bowl
400mm between rails

DARTS
General use - domestic, commercial, healthcare facilities
Independently lifting (lift up and back) arms enable transfers from either side of the toilet
Dimensions : 350mm above toilet bowl
540mm between rails

NEW DARTS
Height adjustable curved armrests can be turned through 360 degrees to orientate the horizontal top rail in the optimum position.
Available in two height ranges:
120 - 470mm standard
200 - 350mm for smaller people eg school children
Suit users from 15 to 150kg.

ECONO DARTS
Econo Darts have fixed rails and are customised for each user.

More Details

. Only recommended anchor bolts should be used to secure Darts to toilet pan.
. Users weight must be evenly distributed at all times on all units.

Standards

Some assistive technology needs to meet Australian or other standards. Standards may relate to materials, manufacturing and installation. Products that meet Australian or international standards will have written certification. To find out if a product meets Australian Standards ask the supplier to show you the certificate. For a fact sheet about standards contact us or visit www.ilcaustralia.org/home/standards.asp

NATA test results 2/9/1999
The test sample passed the AS1428.1, 6.2 requirements for strength with the exception that it was not tested in the vertical direction (as the armrests lift out from the retaining frame).

Place Of Manufacture

NSW Australia
