Short Description

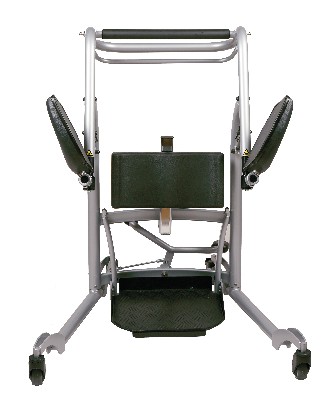

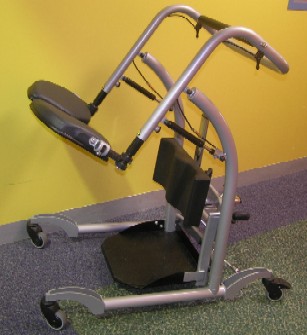

A wheeled transfer aid with adjustable leg spread designed to assist an individual to move from a seated to supported standing position. It is manually operated and suitable for use with individuals with reduced leg strength and balance. A sufficient degree of arm strength and weightbearing is required.
Models
Quick Move
Options
* Safety Pelvic belt which attaches to two holding pins on either side
* Transport sling
| Specification |
Standard |
| Base Height (clearance) |
155 mm |
| Base Length |
920 mm |
| Base Width Maximum (int measurement open) |
From 415 mm to 755 mm |
| Base Width Minimum (ext measurement closed) |
From 530 mm to 855 mm |
| Height |
From 1145 mm to 1235 mm |
| Load Capacity (supplier stated) |
180 kg |
Additional Dimensions
Weight (kg)....................................... 32 kg
More Details
Frame
* Stainless steel, powder coated frame
* A foot pedal is used to adjust the width of the base.
Castors
* Four multi directional swivel castors 95mm
* Rear castors have brakes
Handlebars
* There are two handgrip options. A horizontal handlebar or right and left vertical handlebars to accommodate for users of different heights
* The rounded handlebar ensures an ergonomically correct forward leaning rising action and are covered in a soft padding
* The handlebars are angle adjustable via two side levers that work on gas pistons
* Adjusting the handlebar angle automatically alters the height and angle of the of the padded support seat
Seat
* Padded, split sectioned support seat which is height and angle adjustable
* The support seats are swing away at 90 degrees to allow access to the footplate
Footplate
* The removable solid footplate has a slip resistant surface and is slightly angled to enable water drainage
* There is a high back heel plate which must be folded up during patient transport
Knee Pad
* Height and depth adjustable, tiltable, padded
