Short Description

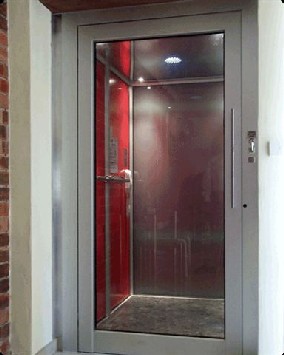

A hydraulic drive residential vertical lift with a four person capacity and maximum travel distance of 12 metres or four stops. It is fully automatically computer controlled with included swing landing doors. It is designed to suit small spaces. Available with an aluminium or glass shaft.
Options
* Lift Shaft : aluminium or glass
* Range of floors, landing doors, walls, cabin profiles
* Vertical or horizontal controls
* Alternative car sizes
Models
One model is available in a range of sizes
More Details
Method of lift operation automatic push buttons and key lock in lift cabin
Method of door operation partially automatic swing doors, 750 or 950 door width
Accessibility of control panel within the lift vertical or horizontal (wheelchair accessible height)
Other features
* A large range of finishes
* Drive: Hydraulic
* Maximum floors: Four
* Cabin Door Way Protection Full Height Curtain of Light
* Several safety features included
Additional dimensions
Pit depth 100 mm
Headroom 2700 mm
Ceiling height 2025 mm
Installation
In NSW the owner or controller of the lift (if not the owner) is required to register their lift with WorkCover. They need to complete Form PL2 Application For Item Registration of Lift / Escalator and Moving Walkway. A fee of $65 is charged for a lift installed in a public place. The applicant must state that the plant has been inspected by a competent person and is safe to operate (use).
It is compulsory that the lift be inspected annually by a competant person. WorkCover requires payment for registration as well as an annual fee.
Request further details from the supplier or contact WorkCover Plant Registration Unit.
It is an offence to operate plant that is not correctly registered under the Occupational Health and Safety Regulation 2001.
Standards
Specific Australian Standards or other Standard(s) may be applicable for materials, manufacturing processes, or installation of some types of equipment. Compliance with relevant Standards is indicated by written certification that a product has been tested and assessed as compliant with specific Standards. Purchasers are advised to check with the supplier or manufacturer of this item as to its compliance with relevant Standard(s).
This lift complies with AS1735 Part 18; BCA E3.6; (AS1735 Part 15 optional)
Place Of Manufacture
Italy, Japan and China
