Short Description

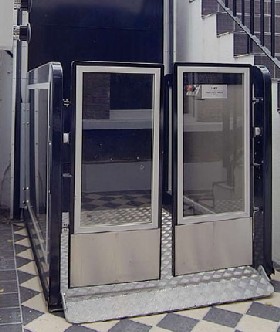

An electrically operated lift with a maximum travel of 2 metres and two stops. It features a screw and nut driven lifting platform and has an open design covered by toughened and laminated glazed panels. It does not require a pit and comes with an internal ramp. The lift is suitable for indoor and mainly outdoor applications. The load capacity is 300 kg or two persons.

Options

* Colour choice
* Galvanized
* Key controls
* Through car or adjacent entry
* Audible announcement of floor

Models

Models with either through car or adjacent entry

More Details

Drive System
* Double V belt transmission to a rotating nut assembly
* Driving nut and safety nut working on a fixed hanging screw

Finish
Colour of choice

Controls
Platform Controls
* Tactile and braille hold-to-run floor designated buttons, emergency stop and alarm buttons on platform console
* Controls are set at a suitable height for a wheelchair user
Landing controls
* Tactile and braille call buttons at each landing and key switch

Doors
* Two saloon type double gates that open in both directions

Power Source
* Mains electricity
* Power requirements 415v or 240v

Motor
1.1kw

Safety Features
* A safety plate covers the whole underside of the platform, if the plate is touched the lift stops immediately.

Installation

The B type platform lift does not require any pit as it comes complete with an internal ramp. The lift bolts directly against the vertical wall and is supported by the slab.

In NSW the owner or controller of the lift (if not the owner) is required to register their lift with WorkCover. They need to complete Form PL2 Application For Item Registration of Lift / Escalator and Moving Walkway. A fee of $65 is charged for a lift installed in a public place. The applicant must state that the plant has been inspected by a competent person and is safe to operate (use).

It is compulsory that the lift be inspected annually by a competant person. WorkCover requires payment for registration as well as an annual fee.

Request further details from the supplier or contact WorkCover Plant Registration Unit.

It is an offence to operate plant that is not correctly registered under the Occupational Health and Safety Regulation 2001.

Standards

Complies AS1735:14 (information from supplier)

Place Of Manufacture

Sweden
