Short Description

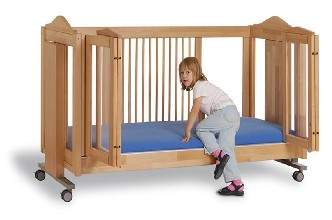

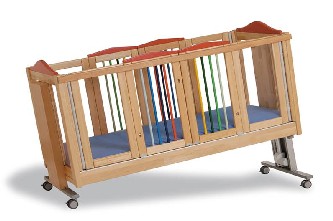

A European made electrically operated hi low, five section, three quarter size bed, with two direction tilt. The frame and safety sides are made of wood. The safety sides are single or dual bi-fold and the panels are a combination of perspex and rails. The bed has an external door locking safety system. The bed is suitable for children and adults.

Options

* Two styles of doors
* Pressure relief foam mattress
* Incontinence cover on mattress
* Internal padding as required

Models

* Safe Surround Genie 70 Bed - 3/4 size single bed
* Safe Surround Genie 80 Bed - full size single bed

Additional Dimensions

Safe Surround Genie Bed Size 1
Internal Width.................................... 900 mm
Internal Length................................... 1700 mm

Safe Surround Genie Bed Size 2
Under Bed Clearance............................... 190 mm
Internal Width.................................... 900 mm
Internal Length................................... 2000 mm

More Details

Base
* Wooden bed base with metal frame for hi-low function
* The wood used for construction is protected against sweat and saliva

Panels
* The bed is enclosed by four panels made from a combination of perspex and wooden rails
* Both side panels can be opened by hinged single or dual bi-fold panels for carer access
* Opening panels have an external door locking safety system
* Panels 800mm high
* Two external wooden lock-in bars (one on each side) prevent active users from forcing the bi-fold panels apart. The lock-in bars are held in place by a metal pin at either end and by two metal hooks that attach to the top of the bi-fold panel

Mattress
A standard foam mattress is provided with the bed

Adjustments
* Hi low height adjustment
* Backrest angle
* Leg lift position adjustment
* Trendelenburg and reverse trendelenburg tilt

Controls
* Hand held on an extendable cord
* Single control piece with push buttons
* Each button has a specific function to adjust the positions of the bed
* Each function has a lock out button

Power Source
* 240 volt power point
* The power is supplied to the hand piece through a 12 volt transformer

Safety Features
* Lock out facility for bed functions
* Separate lock out facility for tilt function
* Lock out facilities located on control box under the bed
* External door locking safety system has two stages. Stage one is a single finger lock located on the bottom panel rail at the head and foot ends of the bed, this locks each bi-fold panel in place. The second stage has two finger locks, one located on the central upright of the panel and the other on the top rung of the panel, that must be activated at the same time. This locking mechanism holds the two side panels together and provides more stability to the panels, when locked, when an active or restless user is in the bed

Motors
* Are located under the bed

Brakes
* Lever pedal type on all four castors

Factors To Consider

* Rails with or without perspex glazing allow for eye contact between occupant and carer
* The perspex panels allow for uninterrupted vision between user and carer
* Lowered height may allow user to be independent in transfers while higher height allows care giving without back strain

Caution
* Bed rails are used to try and protect the bed occupant from injury. They may increase the risk of injury to the occupant in several ways. Entrapment of limbs or body parts may occur within the rails, or between the rails and the bed. This may occur to those having a seizure, or rolling over in bed, or if unstable while transferring out of bed
* Bed rails can cause some occupants to become anxious while in bed. They may try to climb over the rails, particularly if the occupant has a condition such as dementia

Maintenance

Refer to the supplier and manufacturer manual for maintenance instructions and safety warnings.

Place Of Manufacture

Europe

Standards

Some assistive technology needs to meet Australian or other standards. Standards may relate to materials, manufacturing and installation. Products that meet Australian or international standards will have written certification. To find out if a product meets Australian Standards ask the supplier to show you the certificate. For a fact sheet about standards contact us or visit www.ilcaustralia.org/home/standards.asp
