Short Description

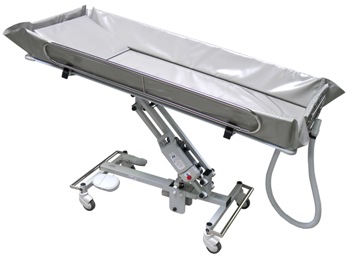

A mobile shower trolley with battery powered adjustable height and powered tilt (feet down). It also features adjustable fold down sides and ends and central locking. Designed to enable a person to be showered / bathed in the lying position. The person can be transferred whilst horizontal or hoisted onto the trolley. Available in one size only.
Method Of Use
Tilt function
The up/down tilt function is operated using the hand control
Operation
By pressing the relevant buttons on the hand control the head section may tilted or the up/down function of the unit activated.
WARNING: The side rails MUST be up and locked to ensure client
safety during operation.
| Specification |
Standard |
| Height |
From 560 mm to 1060 mm to top of base plate |
| Length |
2060 mm |
| Load Capacity (supplier stated) |
175 kg |
| Width |
780 mm |
Additional Dimensions
Anti trendelenburg angle approx 10 degrees
Wheel diameter 150 mm
More Details
Frame
Powder coated steel
Sides
Adjustable lockable side and end rails
End rails have four lockable positions from upright to lowered positions
Top
Removable, waterproof and padded
Castors
* 150 mm low friction wheels
* Central braking, straight steering and free position
Filling and drainage
* Drain channels in the mattress facilitate the complete draining of pooled water which then empties via the built-in drain and hose
* The trolley can be tilted to assist with drainage
Height and tilt adjustment
* Electrically operated using a rechargeable battery and a sturdy hand held control on a swivel cord
* Battery powered motor for lifting
* Separate battery powered motor for anti trendelenburg tilt to 10 degrees
* 24 volt Linak Jumbo system
Safety
Emergency lowering
* The shower trolley is equipped with an emergency lowering system
* The lowering system is to be found immediately under the emergency
stop button
* The button is activated using a pointed instrument e.g. a ballpoint pen
Maintenance
Cleaning
The shower trolley may be washed using soap and water. Low power disinfectants may also be used.
Standards
Some assistive technology needs to meet Australian or other standards. Standards may relate to materials, manufacturing and installation. Products that meet Australian or international standards will have written certification. To find out if a product meets Australian Standards ask the supplier to show you the certificate. For a fact sheet about standards contact us or visit www.ilcaustralia.org/home/standards.asp
Place Of Manufacture
Denmark
