Short Description

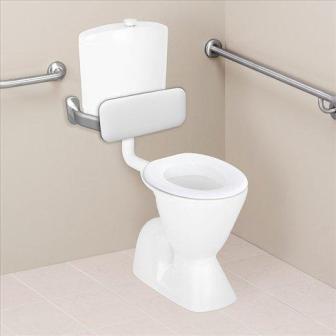

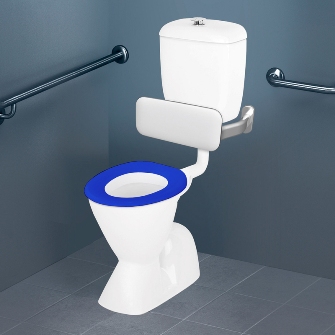

A vitreous china toilet suite package for use by both the ambulant person with disabilities and wheelchair users including wheeled commode chairs. It features a Cosmo Care Pan with concealed trap and a Sovereign 200 cistern (wall fixed version). The suite is designed to be installed to meet the AS 1428.1 disability standard required for public buildings.
Options
* S trap or P trap
* Push button options
* Seat options
Models
* Cosmo Sovereign Care S trap Toilet Suites - Caravelle Single Flap - Backrest Curved Arm Included 987919B
* Cosmo Sovereign Care P trap Toilet Suites - Caravelle Single Flap - Backrest Curved Arm Included 987929B
* Cosmo Sovereign Care S trap Toilet Suites - Caravelle Single Flap 987919
* Cosmo Sovereign Care P trap Toilet Suites - Caravelle Single Flap 987929
Caroma has nine AS1428.1 compliant toilet suites available
More Details
Pan
* A floor mounted vitreous china toilet pan
* Cosmo Care Pan concealed trap pan 4.5 litre full flush washdown type.
* This is a taller than standard pans which facilitates transfers for those with mobility difficulties
* This pan has the option of being attached with either a S trap (WELS 4 star rated) or P unvented trap(WELS 4 star rated) which is concealed
* 50mm back inlet
* Only available in white.
Cistern
* Sovereign 200 Cistern (wall fixed version)
* Caroma Care button options- white plastic, chrome
* Standard bottom entry cistern available as RH inlet and is interchangeable.
* Quietflow inlet valve. Internal overflow only.
* Important-Maximum working pressure 1000kPa flow pressure
Seats
* Caravelle Care single flap seat supplied as standard
* Available in Caroma white (W), sorrento blue (SB) and majestic grey (MG)
* Includes solid stainless steel hinges, plus rotatable buffers for extra stability during sideways transfers
* Reference to AS1428.1-2009 must be made in regards to luminance contrast when selecting the seat colour.
* Other seat options are available. Contact supplier or see their website for options.
Caroma Care Backrest Curved Arm
* This must be installed on toilets in public buildings. It fully complies to AS1428.1
* Includes durable and hygienic stainless steel arms with a white contoured backrest
* Provides support and comfort
* Designed to withstand a force of 110kg in any direction
Installation
* Must be installed be a licensed plumber
* In public buildings, toilet pans and cisterns must be installed in accordance with AS1428: Part 1 and with the normal minimum drain line grade requirements in AS/NZS 3500.2
Standards
Some assistive technology needs to meet Australian or other standards. Standards may relate to materials, manufacturing and installation. Products that meet Australian or international standards will have written certification. To find out if a product meets Australian Standards ask the supplier to show you the certificate. For a fact sheet about standards contact us or visit www.ilcaustralia.org/home/standards.asp
Place Of Manufacture
Australia
