More Details

Application
A two heat lamp model is suitable for use in ensuites and a four heat lamp model for main bathrooms

Features of each model
* Efficient and economical operation
* In built thermal protection for added safety
* Exhaust fan
* Clipsal 2000 Series labelled wall switches, gridplate and cover included

Safety features
* Heat resistant ceramic lamp holders and an all-metal body
* For added safety, the exhaust fan automatically turns on whenever the heat lamps are in use to prevent heat build-up
* In built thermal protection. A temperature sensor instantly turns off the heat lamps should the unit overheat. However, the exhaust fan will stay on to cool the unit down, while the centre light can still be used

Suitable for tight spaces
For bathrooms with restricted ceiling spaces, two models include side connected flexible ducting. This extracts steam and air outside preventing moisture damage.

Considerations

* Radiant globe heaters are not designed to heat entire rooms, but to provide instant and concentrated heat directly below. Always locate a Sunshine bathroom 3-in-1 where drying off takes place and not directly over the shower or bath

* Although Sunshine 3-in-1s are economical to run, it is recommended that heat lamps operate for no more than 15 minutes at a time to save electricity and to help protect the environment

Place Of Manufacture

Australia

Price Guide

7500ATP,WE model (display at ILC NSW).
Contact supplier/s for pricing information.

Models

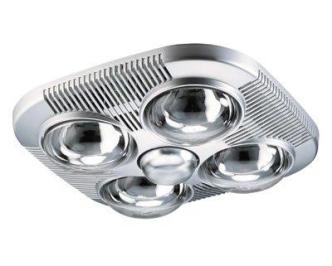

Airflow Sunshine 4 x 275W heat-lamp model 6500A
* Designed for bathrooms with ceilings up to 2.7 metres (9 feet) in height
* Slimline grille improves exhaust performance
* 4 x 275W heat lamps with ceramic lamp holders
* Two heat settings
* An 11W centre lamp for optimum brightness
* Switch mechanisms clearly labelled for easy identification
* Spring loaded clamps for easy installation
* Powerful ball bearing exhaust fan for increased air movement

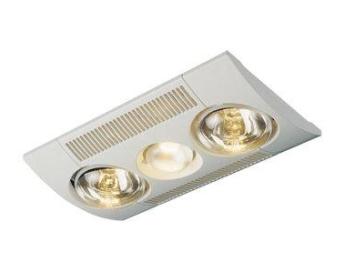

Airflow Sunshine En Suite model 6600A
* Suitable for bathrooms or en suites with ceilings of average height (2.4 metres / 8 feet). Can also be used in some toilets and laundries
* Included in this compact 3-in-1 unit are two 275W radiant heat lamps, a 100W central reflector globe and a high performance exhaust fan
*100 Watt centre light for improved brightness
* Powerful exhaust fan with ball-bearing motor
* Double insulated

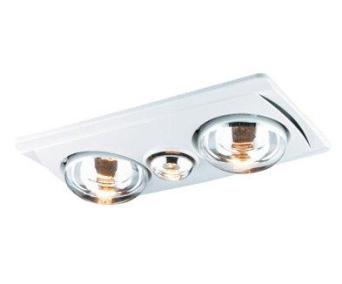

Airflow Sunshine 2 x 275W heat lamp model 7600ATP,WE
* Suitable for smaller bathrooms with restricted ceiling space above 215mm
* 2 x 275W radiant heat lamps with ceramic lamp holders
* Side connected ducting for ceiling cavities above 215mm
* Ball bearing motor and centrifugal fan for room ventilation through ducting
* One heat setting
* An R80 60W centre lamp
* 3m x 150mm ducting
* Wall / eaves outlet included

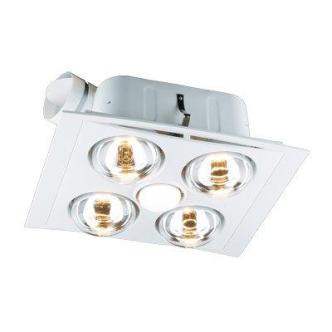

Airflow Sunshine 4 x 275W heat lamp model 7500ATP,WE
* Suitable for bathrooms with restricted ceiling cavities above 230mm
* 4 x 275W radiant heat lamps with ceramic lamp holders
* Side connected ducting for ceiling cavities above 230mm
* Ball bearing motor and centrifugal fan for room ventilation through ducting
* One heat setting
* An R80 60W centre lamp
* 3m x 150mm ducting
* Wall / eaves outlet included

Installation

* Requires professional installation
* Each model is supplied with a ventilation outlet designed for easy installation on
walls or under eaves. Outlets can be fitted with insect screens, automatic
shutters and fixed louvres. Consult your electrical contractor for the appropriate option

Maintenance

The fascia has large flat surfaces to prevent dust traps forming and making it easy to clean.
