More Details

Frame
* Compact front wheel drive rigid frame
* Choice of frame colour

Seat
* Compatible with almost all of Magic Mobility's seating range and aftermarket options

1) MPS Seating (standard)
* MPS seat, back and headrest (410 - 610mm wide)
* An anti-thrust seat front, lateral contouring on both the padded seat and a padded backrest. Extra supportive wing bolsters on the backrest and built-in lumbar support.
* A manual reclining system
* An adjustable headrest
* Seat width, seat depth, armrest height, leg rest length and depth and backrest position are altered to suit various seating cushions and backrest styles.
* The padded seat features three grades of soft foam and a rubber sprung pelvic support area.
* The seat can also be manufactured to incorporate various aftermarket brands of pressure relief cushions such as Jay and Roho.

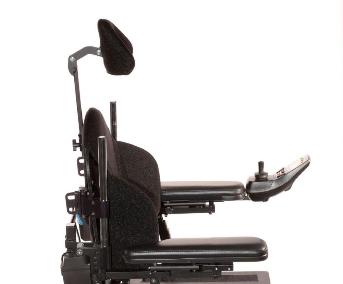

2) Magic Rehab Seating
* Offers support, flexibility and adjustability.
* This product can be fitted to all our wheelchair models. It can also be mounted to other wheelchair bases with backrest canes (diameter 7/8 - 1 inch [22 - 25mm]). It is mounted on the modular backrest canes and has a fully adjustable bracket.
Customisable options
* Bolster sizing and depth
* Bolster angle
* Vertical and horizontal adjustment
* Lumbar support
* Other custom options to suit your needs

Upholstery
* Padded upholstery covered with synthetic material

Headrest
Options include
* MPS Headrest. Solid headrest can be positioned in a variety of ways to suit people's unique needs.
* Rehab Single Stem Headrest. More compact. Offers firm support. Available in two sizes: standard or wide. Has a removable cover.
* Rehab Double Stem Headrest (as above but with double stem)
* Rehab Multi Axis Stem Headrest

Armrests
* Full length
* Padded and upholstered
Options
* MPS Armrest - soft and contoured. Designed to give maximum support from the elbow to the wrist.
* 50mm Armrest
* 75mm Armrest
* Gutter Armrest
* Waterfall Armrest

Legrest
Options include
* Powered Leg Rests
* Swing Away Legrests
* Drop In Legrests
* Centre Post Legrests
* Side Mount Legrests
* Manual Elevating Legrsts

Wheels
* 356mm all-terrain low pressure knobby tyres

Castors
* Standard castor size 220mm x 65mm (black)

Brakes
* Electromagnetic brakes

Controls
* Joystick
* Proportional, programmable
* Speed selection, battery indicator, button for tilt/recline, horn
* Penny and Giles R-net range of electric wheelchair controls offer customisable drive profile programming, including adjustments to speed, acceleration and turning. This programming helps ensure that the wheelchairs drive in a way that suits different customer's skill levels and requirements.

Batteries
* Standard Battery Size 2 x 73 amp-hour gel cell

Motor
* Motors 68Nm Torque, 800W, Gear-In-Line

Transport or Dismantling
* Wheelchair does not dismantle

Accessories
* See Options list

Considerations

Transport Accessibility
The space allowed on public transport for carrying mobility equipment is an area of 1300mm by 800mm.

Wheelchair spaces
All new Sydney buses feature special 'kneeling suspension' and a ramp to provide easy access for less mobile passengers.

There are spaces for two wheelchairs on the new buses. These will accommodate most manual and electric wheelchairs with maximum length 1250mm, maximum width 750mm, maximum turning circle1500mm and maximum weight 200kg.

For safety reasons, passengers in wheelchairs are advised to face the back of the bus, bracing their wheelchair against the side of the space, applying the brakes and securing the seat belt of the wheelchair.

Wheelchair accessible buses display a blue and white wheelchair sign on the front of the bus, and on the easy access door.

Occupied Wheelchair in a Car
A person sitting in a wheelchair within a car or van requires certification and RMS (Roads and Maritime Services) approval for the wheelchair and occupants restraint system where the wheelchair or occupant are restrained to the vehicle structure. RMS approval is not required for a postural support, such as a harness, that is only attached to the wheelchair and not to the vehicle.

Wheelchair Restraints
When transporting a person in a wheelchair in a car or van, both the occupant and the wheelchair require a Roads and Maritime Services (RMS) approved restraint system. The wheelchair and the occupant need to be separately secured to the vehicle itself.
RMS approval is not required for a postural support, such as a harness that supports the user in the wheelchair but is not part of the vehicle restraint system.
The use of a headrest is not legally required but strongly recommended. Easily detachable, folding headrests which fit a wheelchair with standard push handles are available. Contact the supplier or refer to section Wheelchair, Scooter, Cushions, ramps / Postural Supports - Seating System: Restraint+Head+Back+Seats

Place Of Manufacture

Magic Mobility, Vic, Australia

Price Guide

Contact supplier for price

Models

Only one model available

Options

* MPS Seating
* Magic Rehab Seating
* Power Lift
* Power Tilt
* Power Recline
* Powered Leg Rests
* Swing Away Legrests
* Drop In Legrests
* Centre Post Legrests
* Side Mount Legrests
* Manual Elevating Legrsts
* MPS Headrest
* Rehab Single Stem Headrest
* Rehab Double Stem Headrest
* Rehab Multi-Axis Stem Headrest
* MPS Armrest
* 50mm Armrest
* 75mm Armrest
* Gutter Armrest
* Waterfall Armrest
* Wheelchair Control Systems
* LED Headlights & Taillights
* Sunshades
* Cane/Stick Holders
* Drink Holders
* Colour & Finish Options
* Extras & Customisation
* Crash-Tested Car Tie Downs

Additional Dimensions

Base length 790 to 910 mm
Drive wheel 356 mm
Max speed 10 km/hr

Maintenance

All wheelchairs require regular maintenance. Refer to User Manual for specific details.

Standards

Standards
Some assistive technology needs to meet Australian or other standards. Standards may relate to materials, manufacturing and installation. Products that meet Australian or international standards will have written certification. To find out if a product meets Australian Standards ask the supplier to show you the certificate. For more information about standards also see
www.ilcnsw.asn.au/home/assistive_technology/standards

TGA
Many of the items on the ILC NSW website are categorised as a Medical Device. Medical devices that are approved for use in Australia have been entered into a national database called the Australian Register of Therapeutic Goods (ARTG), which is maintained by the Therapeutic Goods Administration (TGA). You can ask the supplier for the ARTG number for the device you wish to purchase and search the ARTG for the entry. To access information on the ARTG visit www.tga.gov.au

When buying a medical device it is advisable to only choose a medical device that is recommended by a healthcare professional and has been included on the ARTG.

Licence & Insurance Requirements

In NSW, motorised wheelchairs that weigh less than 110 kg and cannot travel at more than 10 km/h do not have to be registered, provided they are being used by a person with mobility problems. A person driving a motorised wheelchair under these circumstances is defined as a pedestrian under the Australian Road Rules and is permitted to travel on a footpath or nature strip adjacent to the road.

Vehicles exempt from registration are covered by the nominal defendant scheme (administered by the Motor Accidents Authority) if they are at fault in an accident in NSW on a road or road-related area and cause injury to another person. However, this cover is only valid in NSW.
