Short Description

An electrically operated, fully upholstered lifting and reclining lounge chair. Available in different sizes and styles including bariatric models. Models are also available with single or dual motors.

Method Of Use

* A power lead from the chair connects to 240v power outlet and controls are hand held on a short lead when seated in chair.
* A push button hand held remote control operates up/down action.
* Continued pressure on the button is required to operate the chair.

Models

Product codes are from Able Rehabilitation Equipment (importer)
NOTE: the models for bariatric use are listed under Assist-A-Lift Bariatric Lounge Chairs

Assist-a-lift Petite (Model 8122)
* Compact size to suit the smaller user
* Fully chaised with continuous padding between seat and legrest
* Padded, layered backrest

Assist-a-lift Junior (Model 8123)
* Junior size to suit the smaller user
* Full chaise pad
* Padded, layered backrest

Assist-a-lift Slimline (Model 8124)
* Compact arm design for where space is limited
* Narrower armrests
* Padded, layered backrest (less padding than other styles)

Assist-a-lift Capri (Model 8125)
* Economically priced
* Features a buttoned back, side pocket, head pillow and armrest covers

Assist-a-lift Supreme (Model 8101)
* Similar to the Capri but features a soft seam style back with a padded lumbar section

Assist-a-lift Royal (Model 8127)
* Full chaise pad
* Features an adjustable waterfall style back, sculptured armrests, head pillow armrest covers and side pocket
* Extra padding can be added to the back sections, customising lumbar support.

Assist-a-lift Regal (Model 8103)
* Waterful style backrest
* Layered backrest. Padding on each backrest layer can be adjusted.
* Full chaise
* Arms flip open to provide storage area and swingout tray (unique to this model)

Assist-a-lift Relaxer (Model 8105)
* Dual motor provides independent control of backrest and legrest
* Waterful style backrest
* Layered backrest. Padding on each backrest layer can be adjusted.
* Full chaise

Options

* Two way rocker switch to operate up/down action.

Additional Dimensions

Capri
Width..................................... 790 mm
Height.................................... 1165 mm

Junior
Width..................................... 800 mm
Height.................................... 1115 mm

Petite
Width..................................... 775 mm
Height.................................... 1030 mm

Regal
Width..................................... 915 mm
Height.................................... 1220 mm

Relaxer
Width..................................... 930 mm
Height.................................... 1020 mm

Royale
Width..................................... 825 mm
Height.................................... 1205 mm

Slimline
Width..................................... 735 mm
Height.................................... 1165 mm

Supreme
Width..................................... 815 mm
Height.................................... 1180 mm

More Details

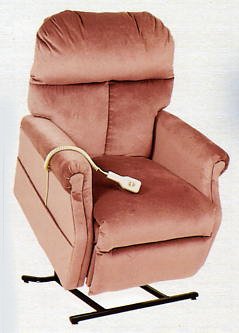

*A fully upholstered lounge chair which can raise the occupant to a height from which it is easier to stand. As the chair rises it also tilts forward to assist in standing. When the chair is lowered to its normal height, it can continue moving into a reclined position with an elevated legrest.

Frame
* Lift and recline mechanism is manufactured from high grade steel
* The chair frame is manufactured from American Birch (wooden)
* The chairs are supplied with head cover, arm covers and magazine pocket

Control
* Operated by a hand held controller
* Rise and recline motion stops at any point when button is released
* Available in a range of fabrics and vinyls
* Most of the models feature a full chaise pad that provides additional legrest support and comfort.

Place Of Manufacture

USA (Action Engineering)

Standards

Some assistive technology needs to meet Australian or other standards. Standards may relate to materials, manufacturing and installation. Products that meet Australian or international standards will have written certification. To find out if a product meets Australian Standards ask the supplier to show you the certificate. For a fact sheet about standards contact us or visit www.ilcaustralia.org/home/standards.asp

These chairs are approved by the Energy Commission of NSW for the whole electrical system motor, wiring and switches.
