Short Description

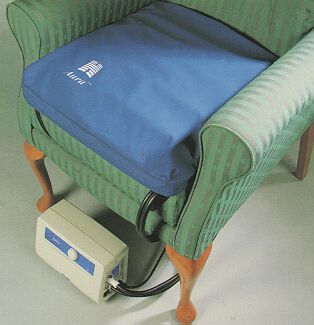

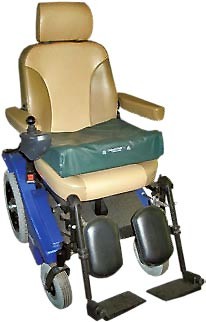

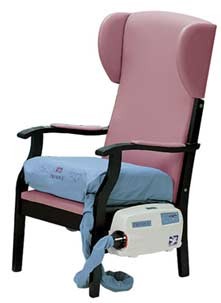

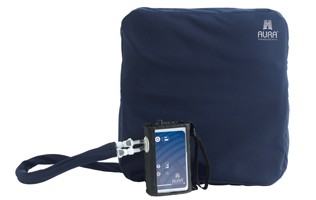

A pressure relieving seating system consisting of an alternating pressure cushion and cover with a compact pump with audio / visual alarms and a hanging bracket. Designed for users up to very high risk of developing pressure sores or with existing pressure sores around the seating area.

Models

One model only

Additional Dimensions

Compressor
Weight (kg) NSW... Unknown
Height NSW........ Unknown
Width NSW......... Unknown
Depth NSW......... Unknown

More Details

. The system consists of a portable pump unit and a cushion overlay made from a bacteria resistant, polyurethane with buckle straps on each corner of the cushion.
. It features 9 individual cylindrical air chambers that span the full width of the cushion and have a 1 in 2 alternating cycle. The chambers press stud into place and are separate from the cushion base and each other so that they can be removed and replaced if punctured.
. The pump supplies air to each alternate chamber resulting in a ten minute cycle of alternative inflation and deflation.

FEATURES
PUMP has an on / off switch and a manual pressure control which is set according to the user's weight and position. There is a written guide on the side of the pump unit. A bracket enables the pump to be attached onto the chair. There is a low pressure and power fail alarm light. These alarms are also audible.

PUMP / MATTRESS CONNECTORS have a "snap-lock" mechanism to minimise accidental disconnection.

ATTACHMENT of the overlays to the mattress is with corner buckle straps.

COVER is made from breathable, water resistant, two way stretch material.

MAINTENANCE REQUIREMENTS The overlay may be sponged down. Infection control guidelines are available. The pumps can be repaired. If an air chamber is punctured the whole air chamber can be removed and a replacement chamber press studded into place.

TRANSPORT FEATURE the tubes can be disconnected from the pump and by connecting them into each other, the pressure in the overlay will be maintained for up to two hours.

Place Of Manufacture

Huntleight Healthcare Limited (UK)

Standards

Some assistive technology needs to meet Australian or other standards. Standards may relate to materials, manufacturing and installation. Products that meet Australian or international standards will have written certification. To find out if a product meets Australian Standards ask the supplier to show you the certificate. For more information about standards also see www.ilcaustralia.org.au/Using_Assistive_Technology/standards_regulation
