Short Description

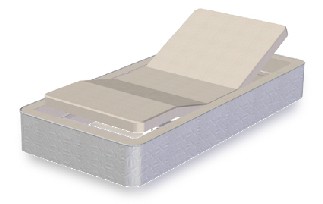

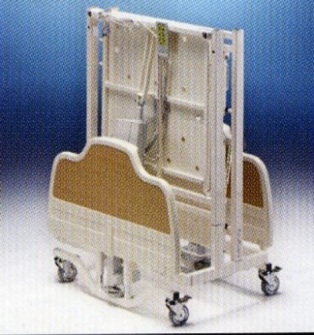

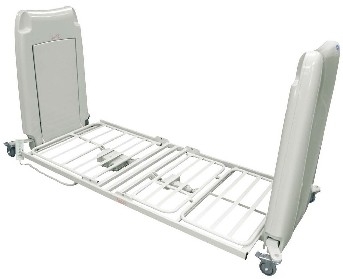

An electrically operated low height bed, with adjustable backrest, bed height adjustment, knee break and optional tilting (Trendelenburg and Reverse Trendelenburg). Available in single bed size only. It dismantles and has clearance for mobile hoists under the bed. Lowest height is 230mm. Available in two section and four section models.

Options

-* Self help pole with handle
* Adjustable handset holder
* Clamp on 3/4 folding safety sides
* Range of mattresses
* Trendelenburg tilt
* Reverse Trendelenburg tilt
* Electric knee break
* Range of panel infill colours

Models

* 2-section model with electric backrest and height adjustment
* 4-section model with electric backrest, height adjustment and knee break

Additional Dimensions

Leg elevation (2 section)...0 to 15 degrees
Leg elevation (4 section)...0 to 18 degrees
Backrest angle..............0 to 70 degrees
Tilt angle..................-10 degrees to +10 degrees
Product weight ............. 79 kg

More Details

Frame
* Removable sheet metal platform sections
* Ivory coloured frame

Head and foot boards
* ABS moulded head and foot panels

Adjustable features
* Electric backrest and height adjustment (2-section model)
* Electric backrest, height adjustment and knee-bend (4-section model)
* Mechanical calf adjustment

Castors
* 100mm zinc plated castors

Optional accessories
* Clamp on 3/4 length folding safety sides
* Self help pole with handle (stainless steel)
* Adjustable handset holder
* Range of pressure relieving and reducing mattresses

Factors To Consider

The tilt facility, when fitted, should only be used with the guidance of a clinically qualified person.

In certain circumstances there is an element of risk involved in the use of a bed pole or bed rail. All users require an initial risk assessment. A risk assessment should be undertaken in each circumstance of use. The Bed Pole or Bed rail should not be used in circumstances where there is a gap between the vertical components and the mattress. Users most at risk would include: those with physical limitations, cognitive impairment or a combination of both, or where the intended user's faculties are comprised by medication. Users should have the risk assessed prior to the prescription of a bed rail or bed pole.

Regular monitoring is recommended particularly where the condition is changing.

Maintenance

Cleaning Requirements
* Before cleaning, disconnect the bed from the mains power supply.
* All surfaces can be cleaned by wiping with a soft cloth moistened with hot water and a mild detergent
* Avoid splashing the actuators and hand set
* Rinse with a cloth moistened with clean water and dry
* Hypocarbonate or phenol based cleaning agents should not be used

Standards

Some assistive technology needs to meet Australian or other standards. Standards may relate to materials, manufacturing and installation. Products that meet Australian or international standards will have written certification. To find out if a product meets Australian Standards ask the supplier to show you the certificate. For more information also see
www.ilcaustralia.org.au/Using_Assistive_Technology/standards_regulation

Place Of Manufacture

Huntleigh Healthcare Ltd (United Kingdom)
