Short Description

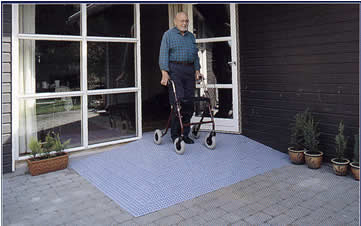

Modularly constructed height adjustable ramps and floors that can fit most openings and doorsteps Each module consists of solid one piece polyethylene with a grid of square holes. These are available with or without sloped edges. The modules are interconnected with special plastic fastenings and are assembled in layers until the required height / gradient is achieved.

Models

Components
. Tile 12503
. Ramps 12505
. Corner Ramp 12507
. Half Tile 12510
. Half Ramps 12511
. Infill Tile 12999
. T Locks 12732
. R Locks 12742
. Mounting Pads 12690
. K Tube 2m (Guard rail with K locks) 17100

Pre Assembled Ramps (see dimensions for sizes)
. Kit 1
. Kit 2
. Kit 3
. Kit 4

More Details

*They can fit most openings and doorsteps regardless of shape and height differential.
*The gradient can be adjusted precisely to requirements and resting platforms can be incorporated as well.
*The ramps can be fitted with both inward and outward corner modules. This makes it possible to negotiate the ramp from all sides.
*The holes facilitate drainage and are used for the insertion of fastenings.
*No damage is done to existing door trim. Doors still close and both the door frame and threshold step remain intact.
*The system can be used anywhere where a ramped surface is required such as over steps, sliding doors, and shower hobs.
*Can be taken apart and reassembled as many times as desired.
self draining, slip resistant surface
*Can be used in any type of weather
*Withstands temperatures from 140 deg C to +100 deg C
*Also acts as a doormat
*Colourfast and UV resistant
*Individual pieces can be purchased
*Recyclable
*Tolerates all household cleaning solutions
*Colours - grey

Installation

*The pieces are fastened together with three special types of plastic lock using a rubber hammer. They are fixed to the subfloor with screws. Individual modules can be sized to fit using a knife or a normal saw.
*The supplier offers an installation service.

Standards

For some types of equipment, specific Australian or other Standard(s) are applicable to the materials used in, the manufacturing processes applied to and the installation of products. Compliance with relevant Standards is indicated by written certification that a product has been tested and assessed as compliant with specific Standards. Purchasers are advised to check with the supplier or manufacturer of this item as to its compliance with relevant Standard (s).

Place Of Manufacture

Denmark
