More Details

Acorn Superglide Straight Stairlifts

Method of lift operation
* Constant pressure paddle switch on end of both armrests as well as two push button remote controls
* Smooth start / stop action
* Key switch to isolate

Track
* Anodised aluminium extrusion with steel toothed drive rack
* Outdoor rack rust proofed.

Track mounting
Direct onto stair tread

Armrests
Lift up, unpadded moulded armrests

Footrest
Slip resistant covering, lift up

Seat
* Swivel, lift up, fabric padded on indoor model, and vinyl padded on outdoor model
* A retractable belt is standard on the seated model
* The swivel seat allows the user the ability to turn a full 90 degrees when the chair stops at the top of the stairway. This is operated by a lever on the uppermost side of the seat. This means the passenger can exit the lift with both feet on the level landing.

Safety Features
* Five obstacle sensors - the lift stops when a sensor detects an obstacle
* Electronic and mechanical braking systems. The stair lift is fitted as standard with these safety systems to eliminate any possibility of an uncontrolled descent of the stair lift.

Power
* Safe 24 volt rechargeable batteries
* The batteries are maintenance free and charged by a safe 15 volts AC, which is stepped down from the domestic mains supply by the transformer
* Onboard diagnostic control panel allows easy identification of problems with the stairlift
* An LED number display at the side of the unit indicates normal operation, or a fault exists. Allows fast diagnosis and remedy of most potential faults
* Soft start/stop means no jolts of bumps during a smooth journey up or down stairs
* Outdoor models are supplied with a waterproof cover for the motor and drive parts.

Acorn 80 Curved Stairlift

Method Of Lift Operation
* Directional rocker switch on the end of one or other chair arm. Smooth Stop/ Start. On/Off switch and optional keyswitch isolator
* Separate levelling motor electronically monitors travel and ensure the seat is kept level on gradient changes

Track
* Powder coated aluminium extrusion with rack and pinion drive
* Mounted direct to stair treads

Armrests
Fold-up moulded armrests with padded top surface

Footrest
Slip resistant covering , fold-up

Seat
* Padded fold up seat
* Swivel seat feature allows the user to turn the seat to face the landing at the top of the stairs, with both feet on the landing.
* Retractable seatbelt as standard

Safety
* Obstacle sensors stop the lift if it meets an obstruction
* Electronic and mechanical overspeed brakes prevent uncontrolled descent
* On-board diagnostic system monitors operation of the lift and allows easy identification of the lift status for operation and fault diagnosis

Power
* 24v DC Power from maintenance free NiCd batteries
* Automatic onboard charging system ensures batteries are ready for the next journey

Specification
* Each Acorn 80 is custom built to suit each staircase, with options for accommodating both flat and winding turns, and travelling on the inside or outside of the bends
* Detail specification must be confirmed at a home assessment visit by a trained stairlift surveyor

Considerations

Lift registration
In NSW the owner or controller of the lift (if not the owner) is required to register their lift with WorkCover. They need to complete the WorkCover form PIR (Plant Item Registration)January 2011 Application for the registration of an item of plant

A fee of $65 is charged for a lift installed in a public place. There is no charge for a lift installed in a private home. The applicant must state that the plant has been inspected by a competent person and is safe to operate (use).

It is compulsory that the lift in a public place be inspected annually by a competent person. WorkCover requires payment for registration as well as an annual fee.

Place Of Manufacture

Acorn Stairlifts (UK)

Price Guide

Contact supplier for pricing

Models

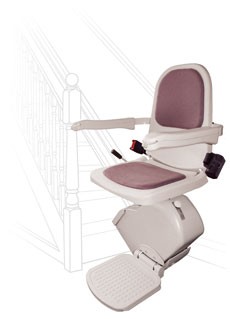

Sit Down Model - Acorn Superglide 120
For those who need a seating position, this model has a full swivel seat allowing the user to turn a full 90 degrees when the chair stops at the top of the stairway. This means the user can exit the lift with both feet on the level landing. When not in use the chair folds allowing free access for pedestrian traffic. Suitable for straight staircases only.

Sit Down Model - Acorn 50 (previously known as Bison 50)
For those who need a seating position, this model has the option of a powered swivel seat allowing an automatic turn of a full 90 degrees when the chair stops at the top of the stairway. This means the user can exit the lift with both feet on the level landing. There is also the option with this lift of a linked footplate, when folding the footrest may be difficult. Suitable for straight staircases only.

Sit & Stand Model - Acorn Superglide 120
This allows the user(s) of the stair lift to choose to ascend / descend the stairs in either the usual seated position or to stand on the footrest, whilst holding onto a special folding steady / security bar for stability. It is suitable for those who may have problems with bending their knees, or where multiple users with different requirements will be using the stair lift. Suitable for straight staircases only.

Stand Up Model (Standing / Perch Seat Model) - Superglide 120
Suitable where the stairs are narrow, or because the users legs will not bend enough to allow them to sit down on the stairlift. It is operated by the remote control system, or alternatively with the wander lead control which can be positioned for maximum comfort and ease of operation. Suitable for straight staircases only.

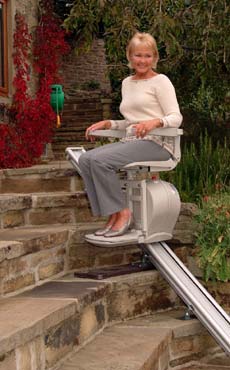

Outdoor Model - Acorn Outdoor Superglide
This is for situations involving any straight staircase that is exposed to the elements, including garden steps, sun decks, porches, front stoops and garage or basement steps. It is resistant to salt air. Suitable for straight staircases only.

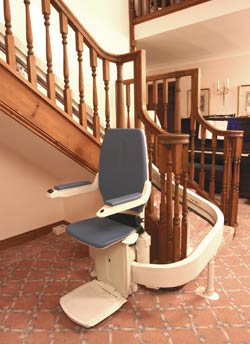

Curved Rail Model - Acorn 80 (previously known as Bison 80)
For indoor stairs with a bend or a change in direction, the Acorn 80 curved stairlift accommodates most stairs and can be used over two or more levels in multi-level homes. Seated models only

Options

Acorn 120
Hinged Rail at bottom of stairs. Where the lower track may be an obstacle, that section is hinged so can fold out of the way when stairlift is not in use

Bison 50
Powered Swivel. When turning the seat may be difficult for the client.
Powered footplate. When folding the footrest may be difficult. Powered hinged rail at bottom of stairs possible. Where the lower track may be an obstacle, that section is hinged so can fold out of the way when stairlift is not in use

Acorn 80
The curved stairlift features parking bend, or hinged options that allow the stairlift to be parked conveniently off the staircase both at the top and bottom of the stairs, as well as a powered swivel seat and powered footrest.

Standards

Standards
Some assistive technology needs to meet Australian or other standards. Standards may relate to materials, manufacturing and installation. Products that meet Australian or international standards will have written certification. To find out if a product meets Australian Standards ask the supplier to show you the certificate. For more information about standards also see
www.ilcnsw.asn.au/home/assistive_technology/standards

TGA
Many of the items on the ILC NSW website are categorised as a Medical Device. Medical devices that are approved for use in Australia have been entered into a national database called the Australian Register of Therapeutic Goods (ARTG), which is maintained by the Therapeutic Goods Administration (TGA). You can ask the supplier for the ARTG number for the device you wish to purchase and search the ARTG for the entry. To access information on the ARTG visit www.tga.gov.au

When buying a medical device it is advisable to only choose a medical device that is recommended by a healthcare professional and has been included on the ARTG.
