Short Description
This System allows an individual to free a person who might be trapped behind an interior locked door. By pressing the spring loaded door stops, the door is free to open outwards. Pressing the door stops again returns the door to it's original state. The System can be installed on all timber and aluminium doors. It can be retrofitted to existing door frames. It is suitable for residential, commercial and industrial applications.
Method Of Use

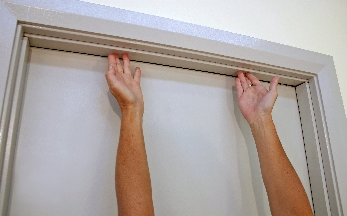

The uniqueness of the Rescue Door System lies in its ability to act as a conventional doorjamb opening in one direction, but when necessary retracting and allowing the doorjamb to open in the opposite direction. This can be achieved by pressing two steel spring loaded catches on the top and sides of the each door frame. For example, the only way to currently gain access to a person in an emergency situation locked in a bathroom with a conventional doorjamb is by using force. The main design improvement over existing doorjambs is the safety offered in opening a door in any direction.
Models
Only one model is available
More Details
. Allows access to a locked room in 10 seconds or less.
. Looks and operates just like a conventional door.
. Available in pre primed finger joint pine, maple, and steel frame.
. Available with manager's key lock for commercial applications.
. Available in the four standard Australian door jamb sizes: 90mm, 110mm, 116mm, 138mm.
. All kits come complete with special hinges, fixing screws, installation instructions and RDS stickers. door, or even children who have accidentally locked themselves in.
There are two elements to the Rescue Door System invention:
1. A retractable doorjamb using spring loaded catches.
2. A large hinge design specific to the Rescue Door System doorjamb.
A conventional doorjamb is a support frame that a door rests upon when closed, so as to only allow the door to open in one direction. It jambs against the lip of wood that surrounds the outer edge of the door to primarily ensure door closure at a specific position. The jam also prevents dust, light, and sound from entering into a room.
The uniqueness of the Rescue Door System lies in its ability to act as a conventional doorjamb opening in one direction, but when necessary retracting and allowing the doorjamb to open in the opposite direction. This can be achieved by pressing two steel spring loaded catches on the top and sides of the each doorframe. For example, the only way to currently gain access to a person in an emergency situation locked in a bathroom with a conventional doorjamb is by using force. The main design improvement over existing doorjambs is the safety offered in opening a door in any direction.
Installation
Quick and easy to install by a builder or home handy man. Kits available for new installations as well as existing dwellings (Retrofit Installation).
A retrofit can be obtained by removing existing doorjambs and hinges and installing the Rescue Door System.
Standards
Specific Australian Standards or other Standard(s) may be applicable for materials, manufacturing processes, or installation of some types of equipment. Compliance with relevant Standards is indicated by written certification that a product has been tested and assessed as compliant with specific Standards. Purchasers are advised to check with the supplier or manufacturer of this item as to its compliance with relevant Standard(s).
Place Of Manufacture
NSW Australia
