Short Description

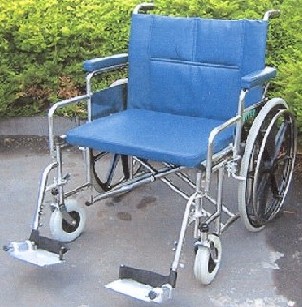

A manual wheelchair with a folding stainless steel frame. The frame is reinforced with a double cross-brace to allow for heavier users. It is self propelled using a rear wheel drive action and is suitable for adults. It is available in three seat widths and has a seat with a solid base that is lifted off to fold the chair.
Options
Some of the standard Vector options are available to fit these chairs. Contact supplier at time of purchase for more details.
Models
Only one model available in two seat widths.
WC/XL24
WC/XL26
| Specification |
Standard |
| Armrest Height (from seat) |
250 mm |
| Backrest Height |
450 mm |
| Legrest Length |
Unknown |
| Load Capacity (supplier stated) |
180 kg |
| Seat Depth |
500 mm |
| Seat Width |
550, 600 or 650 mm |
| Weight (kg) |
28.5, 29 or 29.5 kg |
Additional Dimensions
Weight of Heaviest Part .......22.5kg, 23kg or 23.5kg
Height..................................... 938mm
Width...................................... 750mm, 800mm o5 850mm
Seat Front Height.................. 525mm
More Details
XL62 has been tested to 180kg for AS3596 as this is the largest available test weight in Australia. Supplier states that this chair can carry up to 250kg.
Frame
Folding stainless steel frame that is reinforced and has a double cross-brace.
Seat
Padded board with extra steel reinforcing bars. It lifts out before folding the chair. Available in three seat widths.
Upholstery
Vinyl upholstery with padding, that is double reinforced.
Backrest
Slung backrest.
Armrests
Removable desk style armrests that can be removed for side transfers. The armrest has a padded vinyl upholstered top.
Legrests
Swing away, removable, adjustable in length.
Footplates
Aluminium footplates with heel loops.
Wheels
Puncture proof 610mm "mando" wheels with integrated hand rims. Wheels are fixed.
Castors
Puncture proof solid castors - 200 x 50mm.
Factors To Consider
Wheelchair Restraints
When transporting a person in a wheelchair in a car or van, both the occupant and the wheelchair require an RTA approved restraint system. The wheelchair and the occupant need to be separately secured to the vehicle itself.
RTA approval is not required for a postural support, such as a harness, that supports the user in the wheelchair but is not part of the vehicle restraint system.
The use of a headrest is not legally required but strongly recommended. Easily detachable, folding headrests which fit a wheelchair with standard push handles are available. Refer to section Wheelchair, Scooter, Cushions, ramps / Postural Supports - Seating System: Restraint+ Head+Back+Seats
Standards
Specific Australian Standards or other Standard(s) may be applicable for materials, manufacturing processes, or installation of some types of equipment. Compliance with relevant Standards is indicated by written certification that a product has been tested and assessed as compliant with specific Standards. Purchasers are advised to check with the supplier or manufacturer of this item as to its compliance with relevant Standard(s).
Supplier stated that the largest size wheelchair has has been tested and meets the Australian Standard AS3596.
Place Of Manufacture
Australia
