Short Description

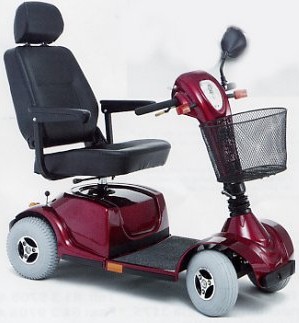

A rear wheel drive, four wheeled scooter with 325mm wheels and four wheel suspension. Features thumb/finger controls, swivel seat with adjustable padded armrests, front head light, indicators, moulded seat, front basket and an off board, 5amp charger. The scooter dismantles into seven pieces. A wide range of accessories is available.

Options

- cane / crutch holder
- oxygen tank holder
- cup holder
- rear basket
- walking frame holder
- 55 Amp batteries

Additional Dimensions

Height .................1300mm
Turning radius..................1683mm

More Details

The scooter comes with front basket and two rearview mirrors as standard. It is available in red or silver.

FRAME
This scooter has an epoxy coated, steel frame, moulded plastic cowlings, rubber protection strip at the front, side and rear of the base and a slip resistant matting on the foot platform.

SEAT
The high back seat with lumbar support has two release levers. The first (on standard and adjustable seats) is located underneath the front (right hand side) of the seat base and allows the seat to swivel through 180 degrees, locking at 0, 45 and 90 degrees. The second (on adjustable seats) is located at the side (right rear), allows the seat to slide forwards and backwards. The armrests pivot up and down.

FOOTREST
Flat platform between the steering column and battery cover

STEERING COLUMN
The tiller can be height and tilt adjusted and is controlled by foam, wraparound, covered handles (delta tiller).

CONTROLS
The programmable controller features proportional speed control; soft touch panel buttons to select one of four speed settings, horn and lights, battery level indictor and wraparound handles with thumb/finger controls. The maximum speed can be reduced if required.

BATTERIES
The scooter is powered by two 40AH (or the option of 55AH) batteries which are housed, along with the built in charger, under the seat. The charger point is located above the rear protection strip.

BATTERY CHARGING
This is achieved by connecting the scooter from the rear charger inlet to a mains power point.

BRAKES
Electronic, regenerative and electromagnetic.

FREEWHEELING
The scooter can be free wheeled by pulling out a lever located at the rear right hand corner of the base. It has easily accessible tie down points for transport.

TRANSPORTING
The scooter can be dismantled into 7 parts for transport - seat, battery cover, batteries and battery boxes, chassis unit, and power pack.

FRONT WHEELS 330mm pneumatic tyres

REAR WHEELS 330mm pneumatic tyres

ANTI TIP WHEELS on the rear

Licence & Insurance Requirements

In NSW, motorised wheelchairs that weigh less than 110 kg and cannot travel at more than 10 km/h do not have to be registered, provided they are being used by a person with mobility problems. A person driving a motorised wheelchair under these circumstances is defined as a pedestrian under the Australian Road Rules and is permitted to travel on a footpath or nature strip adjacent to the road.

Vehicles exempt from registration are covered by the nominal defendant scheme (administered by the Motor Accidents Authority) if they are at fault in an accident in NSW on a road or road-related area and cause injury to another person. However, this cover is only valid in NSW.

Standards

Specific Australian Standards or other Standard(s) may be applicable for materials, manufacturing processes, or installation of some types of equipment. Compliance with relevant Standards is indicated by written certification that a product has been tested and assessed as compliant with specific Standards. Purchasers are advised to check with the supplier or manufacturer of this item as to its compliance with relevant Standard(s).

Place Of Manufacture

Asia
