Short Description

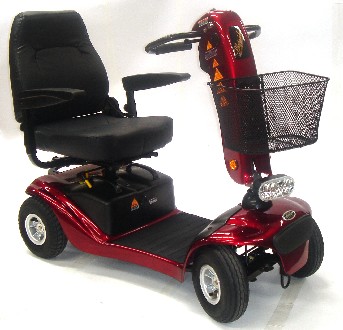

A four wheeled, rear wheel drive scooter with finger operated controls, moulded seating and an off board battery charger. It features an adjustable swivel seat, lift up armrests and a basket. This is the largest portable Scooter in the Shoprider range. The scooter dismantles.

Options

* Wheel Walker Carrier - will take most make of fold up Seat walkers and Rollators
* Stick / Crutch holder
* Walking Frame Holder
* Golf Bag Carrier
* Oxygen Bottle Holder
* Bag carrier
* Tarp Cover

Models

Only one model is available

Additional Dimensions

Turning Circle: 1330mm

More Details

Frame
This scooter has an epoxy coated steel frame, moulded plastic cowlings, and a slip resistant matting on the foot platform.

Tiller
Steering column can be height and tilt adjusted

Seat
* Mid back Captains seat
* Sliding and rotating seat
* Vinyl covered, padded, contoured
* The seat has two release levers. The first allows the seat to swivel through 180 degrees, locking at 0, 45 and 90 degrees. The second allows the seat to slide forwards and backwards. The arm rests are lift up and height adjustable.

Armrests
Lift up armrests

Wheels
Front wheels are 260mm (10") diameter, pneumatic tyres. Rear wheels are 260mm (10") diameter, pneumatic tyres.

Brake
Automatic

Controls
* Finger operated controls
* Horn
* Battery Level Warning Light
* Battery Level Gauge
* Front Lights

Batteries
Batteries are 2 x 35 Amps and are stored in separate boxes with carry straps under the seat.

Battery charging
* Separate charger
* This is achieved by connecting the scooter from the rear charger inlet located on the batteries to a mains power point. The batteries can be charged either on or off the scooter.
* Controls feature a key for turning the scooter on and off, a proportional lever speed control, battery level indicator, speed dial control and soft touch control panel buttons horn and lights. Brakes are electromagnetic.

Safety features
* Anti bump - if the speed lever is not in neutral when the key is first switched on the scooter will not drive off.
* Power Braking - the speed lever can be put in full reverse if the scooter needs to be brought to a stop more quickly.
* Reversing Beeper - a beeper sounds when the scooter is being reversed
* Slope Beeper - the scooter can be programmed to sound a warning beeper if it detects that a steep hill is being climbed or that the scooter is under heavy load.
* Fault Warning - if the scooter detects a fault it will disable the motor drive, apply the park brake and flash the speed lights 1 to 4 in sequence

Freewheeling
The scooter can be free wheeled by pulling out a lever located at the rear of the scooter.

Transporting

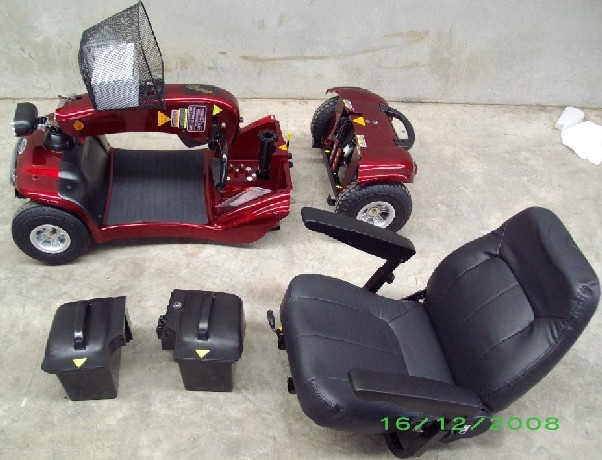

The scooter dismantles into 6 parts for transport - seat, batteries, front basket, chassis unit, and power pack.

Factors To Consider

This item should be trialled in the users home environment to ensure maximum safety / independence. Environmental considerations include kerbs, footpaths, road / railway crossings, etc

Overall length..........1285mm
Overall width...........550mm
The space allowed on public transport for carrying mobility equipment is an area of 1300mm by 800mm.

State transit will only carry scooters with an unladen weight of less than 200 kg and which can be driven onto the bus, and manoeuvred to fit wholly within the designated wheelchair space under their own power. Any such scooters carried must also comply where relevant with the rules applying to wheelchairs.

Three wheeled mobility aids of any kind are unstable in normal bus operations and will not be carried because of the safety risk.

Maintenance

All scooters require regular maintenance. Refer to User Manual for specific details.

Licence & Insurance Requirements

In NSW, motorised wheelchairs that weigh less than 110 kg and cannot travel at more than 10 km/h do not have to be registered, provided they are being used by a person with mobility problems. A person driving a motorised wheelchair under these circumstances is defined as a pedestrian under the Australian Road Rules and is permitted to travel on a footpath or nature strip adjacent to the road.

Vehicles exempt from registration are covered by the nominal defendant scheme (administered by the Motor Accidents Authority) if they are at fault in an accident in NSW on a road or road-related area and cause injury to another person. However, this cover is only valid in NSW.

Standards

Specific Australian Standards or other Standard(s) may be applicable for materials, manufacturing processes, or installation of some types of equipment. Compliance with relevant Standards is indicated by written certification that a product has been tested and assessed as compliant with specific Standards. Purchasers are advised to check with the supplier or manufacturer of this item as to its compliance with relevant Standard(s).

Place Of Manufacture

Taiwan
