Short Description

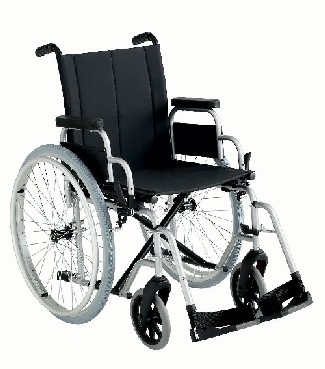

A self propelled wheelchair with a folding lightweight steel frame. The wheelchair has quick release rear wheels with dual position axles. There is a choice of full length or desk armrests. The wheelchair is available in three adult size seat widths. A range of options is available.
Options
* Two axle position options
* Choice of desk or full length armrests
* Elevating leg rests
* Attendant brakes
* Trunk support belt
Models
* Invacare Atlas Lite Self Propelling Wheelchair
* There is also an attendant propelled model Invacare Atlas Lite Transit
| Specification |
Standard |
| Armrest Height (from seat) |
220 mm |
| Backrest Height |
450 mm |
| Legrest Length |
From 420 mm to 500 mm |
| Load Capacity (supplier stated) |
120 kg |
| Seat Depth |
420 mm |
| Seat Width |
410, 450 or 480 mm |
| Weight (kg) |
16 kg |
Additional Dimensions
Seat Angle 3
Seat Rear Height 415 or 440 mm
Seat Front Height 470 or 495 mm
Armrest Height (from seat) 110 mm front of desk style arm rests
Armrest Length 200 mm desk style
Legrest Hanger Angle 65
Width 600, 640 or 680 mm
Width Folded 300 mm
Length 1090 mm
Length 830 mm with legrests removed
Height 890 or 915 mm
Wheel Diameter (Rear) 600 mm
Camber of Wheels 0
Castor Diameter 200 mm
Weight of Heaviest Part 9 kg
Climbing Grade (degrees) 18.5
Turning Circle 870 mm
More Details
Frame
* The frame is constructed of lightweight steel and is folding
* The folding mechanism consists of single cross members
* Wheel axle slots are on the rear uprights on the frame
* The frame is epoxy coated in silver
Seat
* The seat is slung style with padded upholstery
* It is available in three seat widths and a single seat depth
Upholstery
The upholstery is black, padded reinforced nylon
Backrest
* The backrest is a slung style and padded with integrated push handles on the back canes
* The backrest angle is fixed
* The backrest is removable by unscrewing two plastic wing nuts
Armrests
*The armrests are padded and available in full length or desk length at a single height
* They can be removed by depressing a spring loaded pin located at the front of the armrest
* Plastic side guards are integrated into the armrest
Legrests
* The legrests are length adjustable (spring clip mechanism), removable and swing away
* The swing away mechanism operates via a lever mounted alongside the lower mounting bracket
* Elevating legrests with calf pads are available as an option
Footplates
The footplates are composite (plastic) with heel loops provided as standard. They lift up,are a fixed angle and available in one size only.
Wheels

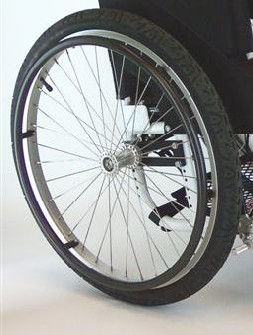

* The rear wheels are spoke style 24" (610 mm) with pneumatic tyres, and feature a quick release axle
* They can be set in two different positions to alter the rear seat to floor height
* The camber is set at zero degrees
* The handrims are anodised aluminium
Castors
* The standard castors are 8" x1 1/4" (200 mm x 5 mm) size with a solid tyre
* The castor fork has a single position and cannot be altered
Brakes
The brakes are push to lock and the brake lever is folding for transfers.
Standards
For some types of equipment, specific Australian or other Standards are applicable to the materials used in, and the manufacturing and installation of products. Compliance with relevant Standards is indicated by written certification that a product has been tested and assessed as compliant with specified Australian Standards. Purchasers are advised to check with the supplier or manufacturer of an item as to its compliance with the relevant Standard(s)
Place Of Manufacture
China
