Short Description

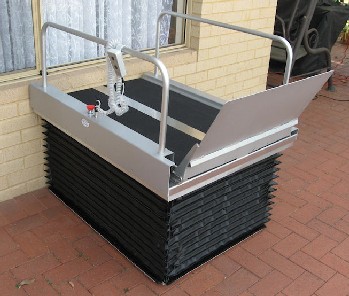

The SF 600 lifting platform is a mains powered vertical lifting platform that transports a user in a wheelchair between two levels of up to a 600 mm height difference. It has indoor and outdoor applications. It features an access ramp, which also functions as a gate, and there are hand rails on both sides.

Method Of Use

To raise the lifting platform from its lowest level
1. When lifting platform is at its lowest level, and the access ramp has been lowered to that level, the wheelchair user can drive onto the lifting platform without hindrance
2. Pressing UP button on the hand held controller raises the access ramp; this then functions as a guard against rolling off. The action is continuous as long as the button is being depressed
3. When the access ramp has been raised to its highest level and the UP button is still being depressed the platform will rise
4. As soon as the lifting platform is level with the landing the platform stops automatically and the user can drive onto the landing

To lower the lifting platform from its highest level
1. The wheelchair user drives onto the lifting platform
2. Activates the hand control by pressing DOWN button to lower the lifting platform. The action is continuous for as long as the button is being depressed
3. When the lifting platform is at its lowest level and the DOWN button is still being depressed, the access ramp will lower to the ground and the user can drive off the lifting platform

Models

Only one model available

More Details

Materials
The lifting platform and frame are made of galvanized steel and other parts are made of aluminium

Features
* It features a safety rail on two sides and the access and drive-off are on opposite ends of the lifting platform
* The platform surface and a ramp incorporates self adhesive non slippery strips 300 mm width

Drive Mechanism
* The driving mechanism is a screw actuator, 24V DC and the main actuator is of worm gear type
* In the case of a power failure it will stop in the position in which the power interruption occurred

Control
The unit is operated using a hand held control which features two function buttons, "up" and "down"

Transporting
The lifting platform can be transported by two people and it can be put on its side for storage area

Place Of Manufacture

Perth, Western Australia.

Standards

Some assistive technology needs to meet Australian or other standards. Standards may relate to materials, manufacturing and installation. Products that meet Australian or international standards will have written certification. To find out if a product meets Australian Standards ask the supplier to show you the certificate. For a fact sheet about standards contact us or visit www.ilcaustralia.org/home/standards.asp
