Short Description

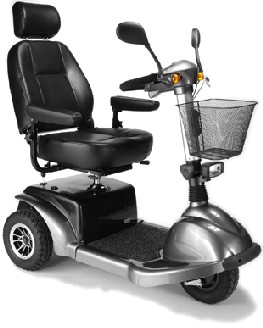

A large, three wheeled, battery powered rear wheel drive scooter designed for outdoor use. It features a padded seat, thumb and finger controls on an adjustable tiller, a front tiller basket and front and rear suspension. A range of accessories are available.

Options

* Crutch or Cane Holder
* Cylinder Tank Carrier
* Armrest Bag
* Backpack
* Rear Basket
* Dust Cover
* Cup Holder

Models

A four wheeled model is also available

Additional Dimensions

Height of Armrest from Seat..180 mm
Height Overall...............1250 mm

More Details

Frame
* The scooter has an epoxy coated, steel frame, moulded plastic cowlings, a metal protection rail at the front of the base and fabric matting on the foot platform
* It has loop handlebars
* The scooter can be free wheeled by lifting a lever located at the rear, right hand side of the base
* It has anti-tip wheels at the rear
* The scooter has front and rear adjustable, spring suspension

Accessories
* A basket at the front is standard
* Headlight, taillights and indicators
* Two rear vision mirrors

Seat
* It has a standard folding 360 degree swivel Captain's Seat (foam padding with vinyl upholstery) with with an adjustable height headrest
* The seat position is depth adjustable using a lever on the side
* It is available in one seat width and one seat depth
* The seat height is adjustable
* The seat is reclining

Backrest
* It has a vinyl covered, padded and contoured backrest with an adjustable height headrest
* The backrest is angle adjustable (25 degrees of recline) and available in one height only

Armrests
Full length, lift up, width and height adjustable armrests are standard

Wheels
It has pneumatic 300mm diameter tyres that are 90mm wide

Controls
* It has a dynamic 110Amp controller
* The controls include buttons for headlight, horn and turn signals
* IIt also has a battery indicator and speed selection
*. It has finger controls for driving forward and reversing
* A diagnostic light flashes a sequence to assist in determining the cause of a fault in the scooter. The owner's manual has a chart to explain what each sequence of lights means
* There is a manual hand brake on the tiller handle that can be used to brake the front wheels if needed

Batteries
* It has two DC12Volt batteries (50Amps per hour)
* The battery Charger is a 5 Amp Offboard charger

Motor
* It has a 4 pole, 24 Volt motor
* The motor can be disengaged for freewheel mode
* It can drive up a 12 degree maximum incline

Dismantling
The scooter is not suitable to break down for transport

Colours
It is available in metallic grey or sky blue

Brakes
It has electromagnetic drum brakes

Factors To Consider

This item should be trialled in the users home environment to ensure maximum safety / independence. Environmental considerations include kerbs, footpaths, road / railway crossings, etc

Overall length...........1280 mm
Overall width........... 660 mm
The space allowed on public transport for carrying mobility equipment is an area of 1300mm by 800mm.

State transit will only carry scooters with an unladen weight of less than 200 kg and which can be driven onto the bus, and manoeuvred to fit wholly within the designated wheelchair space under their own power. Any such scooters carried must also comply where relevant with the rules applying to wheelchairs.

Three wheeled mobility aids of any kind are unstable in normal bus operations and will not be carried because of the safety risk.

Accessible buses display a blue and white wheelchair sign on the front of the bus, and on the easy access door.

Maintenance

All scooters require regular maintenance. Refer to User Manual for specific details.

Licence & Insurance Requirements

In NSW, motorised wheelchairs that weigh less than 110 kg and cannot travel at more than 10 km/h do not have to be registered, provided they are being used by a person with mobility problems. A person driving a motorised wheelchair under these circumstances is defined as a pedestrian under the Australian Road Rules and is permitted to travel on a footpath or nature strip adjacent to the road.

Vehicles exempt from registration are covered by the nominal defendant scheme (administered by the Motor Accidents Authority) if they are at fault in an accident in NSW on a road or road-related area and cause injury to another person. However, this cover is only valid in NSW.

Standards

Some assistive technology needs to meet Australian or other standards. Standards may relate to materials, manufacturing and installation. Products that meet Australian or international standards will have written certification. To find out if a product meets Australian Standards ask the supplier to show you the certificate. For a fact sheet about standards contact us or visit www.ilcaustralia.org/home/standards.asp

Place Of Manufacture

Taiwan
