Short Description

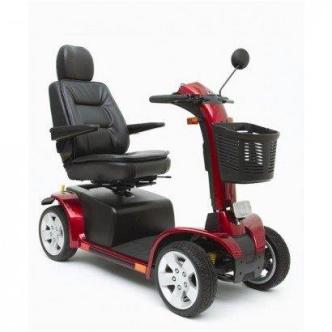

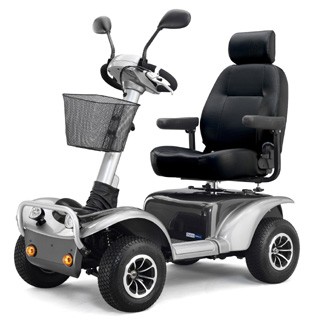

An extra large, four wheeled, battery powered rear wheel drive scooter designed for outdoor use. It features looped handlebars with thumb and finger controls on an adjustable tiller, a front tiller basket and front and rear suspension. The padded Captain's style seat is available in two widths. A range of accessories are available.

Options

* Scooter Trailer
* Crutch or Cane Holder
* Cylinder Tank Carrier
* Armrest Bag
* Backpack
* Rear Basket
* Dust Cover
* Cup Holder

Models

Only one model is available

Additional Dimensions

Standard
Height of Armrest from Seat........180 mm
Turning Circle.....................1854 mm
Floor to seat height ..............635 to 710 mm

More Details

Frame
* The scooter has an epoxy coated, steel frame, moulded plastic cowlings, a metal protection rail at the front of the base and fabric matting on the foot platform
* Loop shaped handlebars
* Rear anti tip wheels
* Front and rear adjustable, spring suspension

Accessories
* A basket at the front is standard
* Headlight, taillights and indicators
* Two rear vision mirrors

Seat
* It has a standard folding 360 degree swivel Captain's Seat (foam padding with vinyl upholstery) with with an adjustable height headrest
* The seat position is depth adjustable using a lever on the side
* It is available in one seat width and one seat depth
* The seat height is adjustable
* The seat backrest is reclining

Backrest
* It has a vinyl covered, padded and contoured backrest with an adjustable height headrest
* The backrest is angle adjustable (25 degrees of recline) and available in one height only

Armrests
Full length, lift up, width and height adjustable armrests are standard

Wheels
Pneumatic 300mm diameter tyres that are 90mm wide

Controls
* Dynamic 110Amp controller
* Controls include buttons for headlight, horn and turn signals, a battery indicator and speed selection
*. It has finger controls for driving forward and reversing
* A diagnostic light flashes a sequence to assist in determining the cause of a fault in the scooter. The owner's manual has a chart to explain what each sequence of lights means
* There is a manual hand brake on the tiller handle that can be used to brake the front wheels if needed

Batteries
* Two DC12Volt batteries (75Amps per hour)
* Battery charger is a 5 Amp Offboard charger

Motor
* 24V x 920W x 3700rpm
* The motor can be disengaged for freewheel mode by lifting a lever located at the rear, right hand side of the base
* It can drive up a 12 degree maximum incline

Dismantling
The scooter is not suitable to break down for transport

Colours
Metallic grey only

Brakes
Electromagnetic drum brakes

Factors To Consider

Transport Accessibility

The space allowed on public transport for carrying mobility equipment is an area of 1300mm by 800mm.
Overall length of this scooter ...........1372 mm
Overall width of this scooter ........... 735 mm

State transit will only carry scooters with an unladen weight of less than 200 kg and which can be driven onto the bus, and manoeuvred to fit wholly within the designated wheelchair space under their own power. Any such scooters carried must also comply where relevant with the rules applying to wheelchairs.

Three wheeled mobility aids of any kind are unstable in normal bus operations and will not be carried because of the safety risk.

Accessible buses display a blue and white wheelchair sign on the front of the bus, and on the easy access door.

Factors applying to all scooters
* This item should be trialled in the user's own environment to ensure maximum safety and independence. Environmental considerations include eg: kerbs, footpaths, tram and railway crossings, street crossings, etc
* Users should take care when riding a scooter or powered wheelchair and observe the following safety guidelines:
* Users who intend to use scooters or powered wheelchairs must ensure they have the necessary physical and cognitive skills to operate and manoeuvre them safely
* Stay within the legal speed limit of 10km/h
* Be aware that taking medication or driving under the influence of alcohol may affect the user's judgement
* Always make sure that you are clearly visible, particularly at night or on dull days-use the lights and reflectors and install a reflective flag high enough to be seen by motorists
* Wear a bicycle helmet whenever possible
* Slow down when you are near other people, especially pedestrians and cyclists
* Avoid stopping or driving on inclines greater than your scooter is designed for
* Use footpaths if possible. If there are no foot paths, plan to user quieter roads
* Plan your trip and avoid uneven surfaces, dips and potholes
* Ensure if you are carrying parcels that the load will not over-balance your scooter and the parcels do not interfere with your controls or vision

Maintenance

All scooters require regular maintenance. Refer to User Manual for specific details

Licence & Insurance Requirements

In NSW, motorised wheelchairs that weigh less than 110 kg and cannot travel at more than 10 km/h do not have to be registered, provided they are being used by a person with mobility problems. A person driving a motorised wheelchair under these circumstances is defined as a pedestrian under the Australian Road Rules and is permitted to travel on a footpath or nature strip adjacent to the road.

Vehicles exempt from registration are covered by the nominal defendant scheme (administered by the Motor Accidents Authority) if they are at fault in an accident in NSW on a road or road-related area and cause injury to another person. However, this cover is only valid in NSW.

Standards

Some assistive technology needs to meet Australian or other standards. Standards may relate to materials, manufacturing and installation. Products that meet Australian or international standards will have written certification. To find out if a product meets Australian Standards ask the supplier to show you the certificate. For more information about standards also see
www.ilcnsw.asn.au/home/assistive_technology/standards

Place Of Manufacture

Taiwan
