Models

HS350 Harvest Cavalier Mattress Replacement - with a manual analogue pump. 190kg load capacity

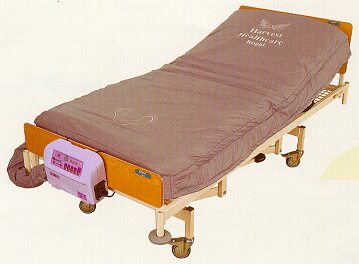

HR400 Harvest Royal Mattress Replacement - with a digital pump. 190kg load capacity
HR400P Harvest Royal Plus Mattress Replacement - with recalibrated digital pump. 350kg load capacity.

Options

low air loss cells can be added

Additional Dimensions

Cavalier Compressor
Weight (kg) NSW................................... 2.5 kg
Length NSW........................................ 97 mm
Height NSW........................................ 200 mm
Width NSW......................................... 304 mm

Royal Compressor
Weight (kg) NSW................................... 3 kg
Length NSW........................................ 120 mm
Height NSW........................................ 225 mm
Width NSW......................................... 340 mm

More Details

STRUCTURE
Two layers of 125mm PVC cells. The top layer has alternating pressure, the bottom layer remains inflated (static). The top three cells in the top layer also remain static
Transport capability - a plug can be inserted in the ends of the connecting tubes to maintain inflation of the mattress.
Quick release cell connectors
Minimum weight for effective use is 32kg

ATTACHMENT
Straps are attached to the mattress for fitting to the bed frame.

PUMP / CONTROLS
Cavalier:
Analogue pressure switch
Power failure switch
Low pressure indicator

Royal:
Digital push button pressure controls
Can operate in 3 modes:
1) adjustable pressure and alternating cycle (5 - 30 minutes)
2) static (pressure can be adjusted to very low - soft)
3) fully inflated for patient care or to facilitate transfers (maximum time 30 minutes)

Royal Plus
Re calibrated pump unit

COVER
Two way stretch, breathable, PU, zippered

SAFETY FEATURES
CPR release (turn knob to release)
Battery backup on Harvest Royal model - lasts 3 - 4 hours
Pump beeps if power failure occurs
Minimum weight for product to be effective is 32kg

CLEANING REQUIREMENTS
Wipe over with damp cloth
Cover can be removed and washed at 71 degrees C for 10 minutes followed by cold rinse and extraction.

Factors To Consider

All pressure reduction products must be monitored to prevent 'bottoming out'. This occurs when the user's weight bears down so hard on the product material that it is flattened and the bony parts are pressed against the surface below the cushion or mattress. Where bottoming out occurs even with correct use (eg correct inflation levels), a different product may need to be considered.

Standards

Some assistive technology needs to meet Australian or other standards. Standards may relate to materials, manufacturing and installation. Products that meet Australian or international standards will have written certification. To find out if a product meets Australian Standards ask the supplier to show you the certificate. For a fact sheet about standards contact us or visit www.ilcaustralia.org/home/standards.asp

Place Of Manufacture

UK
