Short Description

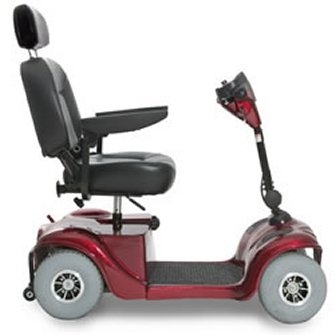

A rear wheel drive battery powered scooter with four wheels. The scooter features thumb controls or finger controls and contoured vinyl covered foam seating. It can be customised in terms of speed lever type, seating options and seat adjustments. A range of optional accessories is available. The scooter is only available in red.

Options

- cane / crutch holder
- oxygen tank holder
- cup holder
- rear basket
- walking frame holder

Models

One model only

Additional Dimensions

Turning Circle.................. 1470 mm
Battery Voltage..................12 volt X 2

More Details

FRAME
This scooter has an epoxy coated steel frame, moulded plastic cowling and slip resistant matting on the foot platform.

CONTROLS
The programmable controller features proportional speed control; horn and a battery level indictor.

FREEWHEELING
The scooter can be free wheeled by pulling out a lever located at the rear right hand corner of the base.

SUSPENSION
Front dynamic

SEAT
A release lever is located underneath the front (right hand side) of the seat base. It allows the seat to swivel through 180 degrees, locking at 0, 45 and 90 degrees.

BACKREST
The backrest angle is adjustable. The headrest is height adjustable.

ARMRESTS
Lift up. Width and height adjustable

STEERING COLUMN
Tilt adjustable

BATTERIES
The scooter is powered by two 12 volt 31AH deep cycle wet batteries which are housed, along with the built in charger, under the seat.

BATTERY CHARGING
is achieved by connecting the scooter from the rear charger inlet to a mains power point.

FRONT BASKET is standard

VEHICLE TIE DOWNS are standard

Factors To Consider

This item should be trialled in the users home environment to ensure maximum safety / independence. Environmental considerations include kerbs, footpaths, road / railway crossings, etc

Overall length........1200mm
Overall width.........600mm
The space allowed on public transport for carrying mobility equipment is an area of 1300mm by 800mm.

State transit will only carry scooters with an unladen weight of less than 200 kg and which can be driven onto the bus, and manoeuvred to fit wholly within the designated wheelchair space under their own power. Any such scooters carried must also comply where relevant with the rules applying to wheelchairs.

Three wheeled mobility aids of any kind are unstable in normal bus operations and will not be carried because of the safety risk.

Maintenance

All scooters require regular maintenance. Refer to User Manual for specific details.

Licence & Insurance Requirements

In NSW, motorised wheelchairs that weigh less than 110 kg and cannot travel at more than 10 km/h do not have to be registered, provided they are being used by a person with mobility problems. A person driving a motorised wheelchair under these circumstances is defined as a pedestrian under the Australian Road Rules and is permitted to travel on a footpath or nature strip adjacent to the road.

Vehicles exempt from registration are covered by the nominal defendant scheme (administered by the Motor Accidents Authority) if they are at fault in an accident in NSW on a road or road-related area and cause injury to another person. However, this cover is only valid in NSW.

Standards

Specific Australian Standards or other Standard(s) may be applicable for materials, manufacturing processes, or installation of some types of equipment. Compliance with relevant Standards is indicated by written certification that a product has been tested and assessed as compliant with specific Standards. Purchasers are advised to check with the supplier or manufacturer of this item as to its compliance with relevant Standard(s).

Place Of Manufacture

Asia
