Short Description

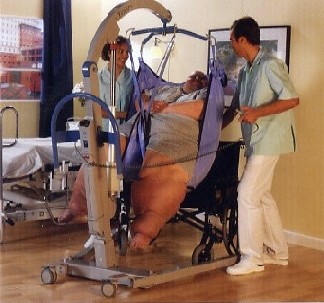

A mobile, battery operated hoist which may be used to lift and transfer a person to and from a bed, chair or the floor. The hoist is designed for bariatric applications with a 4 point spreader bar and heavy duty aluminium frame. The load capacity is 320 kg.
Models
* KHA1000, Tenor Loop Point Hanger
* KHA1010, Tenor Loop Point Hanger with scales
Options
*Weigh Scales
| Specification |
Standard |
| Base Height (clearance) |
100 mm |
| Base Length |
1440 mm |
| Base Width Maximum (int measurement open) |
Unknown |
| Base Width Minimum (ext measurement closed) |
620 mm |
| Height |
Unknown |
| Load Capacity (supplier stated) |
320 kg |
| Spreader Bar Height |
From 210 mm to 720 mm |
| Tilting Frame Height |
Unknown |
| Weight of Heaviest Part |
Unknown |
Additional Dimensions
Weight (kg) NSW................................... 62.8 kg
More Details
Frame
This aluminium framed, epoxy coated hoist has an angled mast and curved boom. It is constructed using bolted sections instead of welded joints to increase strength.

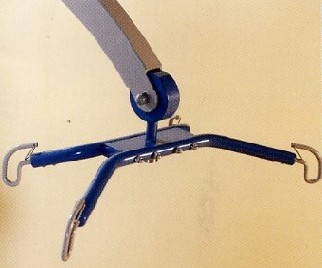

Spreader bar
The 4 point spreader bar enables the occupant's weight to be more evenly distributed over the sling surface.
Push Handle
The hoist has a large, curved push handle mounted on the mast which can assist with manoeuvrability.
Method of operation
The hoist raise and lower and leg functions are all battery powered. The legs can be opened or closed to a full range of positions. There is a Battery discharge Indicator with a coloured illuminated display which indicates power left in the battery.
Power source
The hoist is powered by removable batteries with a LED Battery discharge Indicator which displays battery charge remaining.
Battery Recharging
To recharge, remove the battery and place in recharge holder at power point.

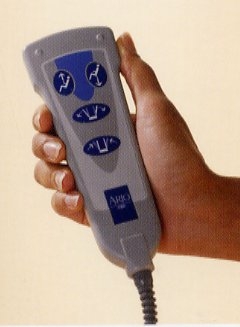

Controls
* The hoist is operated by hand held control, which has push button controls for raise and lower and opening and closing of the hoist legs.
* The hand held control is attached to the hoist by an extendable cord.
* here are dual controls on the hoist mast. Both the controls on the mast and the hand held controls have identical touch sensitive push buttons, with pictures depicting their function.
Castors
The hoist has twin front castors of 100 mm diameter.
Factors To Consider
It is recommended that prior to using this product, training in manual handling and the correct use of assistive devices should be undertaken.
Standards
For some types of equipment, specific Australian Standards are applicable to the materials used in, and the manufacturing and installation of products. Compliance with relevant Standards is indicated by written certification that a product has been tested and assessed as compliant with specified Australian Standards. Purchasers are advised to check with the supplier or manufacturer of an item as to its compliance with the relevant Australian Standard(s).
Place Of Manufacture
United Kingdom
